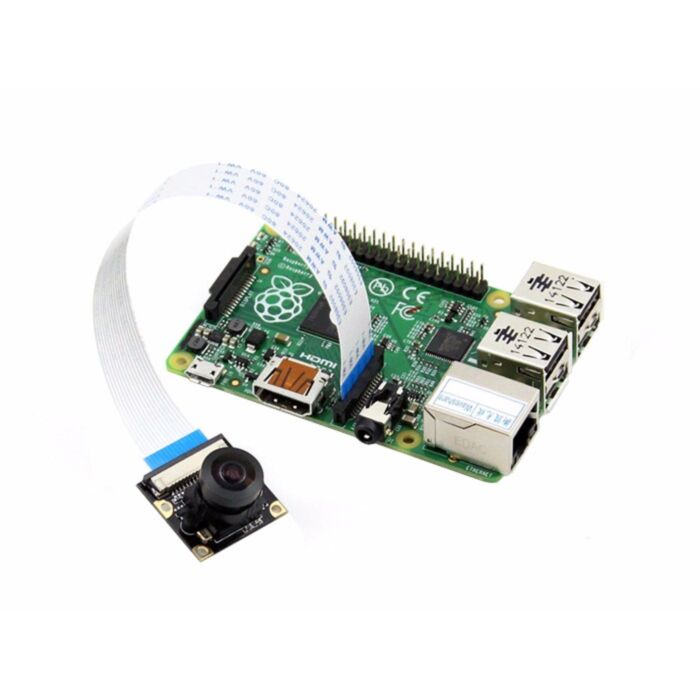

Raspberry Pi Wide Angle Camera Module

Rating:
100% of 100
SKU: CE07137 Brand: Waveshare Guides (1)
Raspberry Pi Wide Angle Camera Module is a low-cost Fisheye Lens, wider Field View,Camera module, designed for Raspberry Pi. Raspberry Pi Camera, supports...
$38.90 AUD, inc GST
$35.36 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Mon, 1st of Apr

Quantity Discounts:

  • 10-25 $34.30 (exc GST)
  • 25+ $33.60 (exc GST)
- +

62 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Favourite product

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Raspberry Pi Wide Angle Camera Module is a low-cost  Fisheye Lens, wider Field View, Camera module, designed for Raspberry Pi.

Features

  • Raspberry Pi Camera, supports all revisions of the Pi
  • Fisheye Lens, offers wider field of view
  • 5 megapixel OV5647 sensor
  • Adjustable focus distance
  • Camera specifications
    • CCD size : 1/4inch
    • Aperture (F) : 2.35
    • Focal Length : 3.15mm
    • Angle of View (diagonal) : 160 degree (while other normal cameras are typically 72 degree)
    • Sensor best resolution : 1080p
  • 4 screw holes
    • Used for attachment
    • Provides 3.3V power output
    • Supports connecting fill flash LED
  • Dimension: 25mm x 24mm

Note: This cable comes with a full-size CSI cable for use with a Pi A or B, but to use the camera with Raspberry Pi Zero / Zero W / Zero WH, you need to buy a specific cable: Raspberry Pi Zero v1.3 Camera Cable
