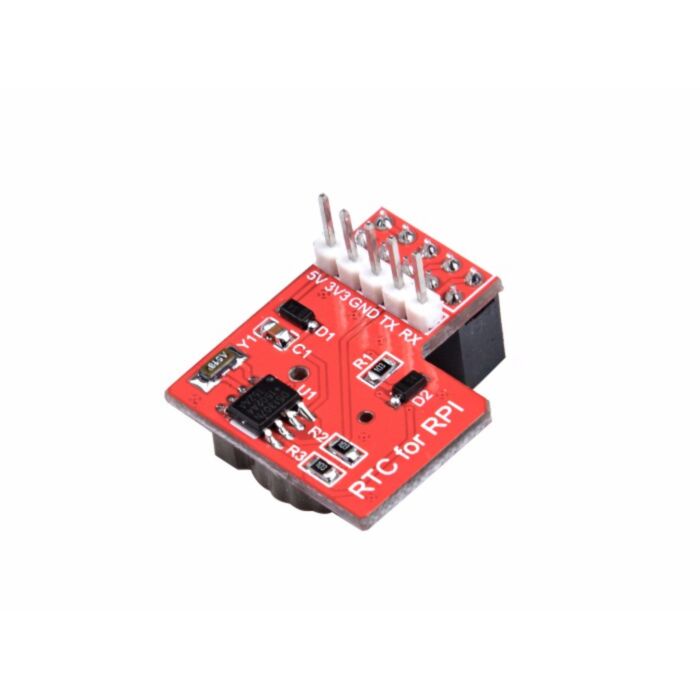

Raspberry Pi RTC Expansion Module v1.1 (Seeed Studio)

SKU: SS114100001 Brand: Seeed Studio

The RTC module is specifically designed for Raspberry Pi. It communicated with Raspberry Pi through I2C bus. There is a Maxim DS1307 and CR1220 button...

$17.05 AUD, inc GST

$15.50 AUD, exc GST

Available with a lead time
Expect dispatch between Nov 24 and Nov 26

Quantity Discounts:

10+ $14.88 (exc GST)
25+ $14.42 (exc GST)

Restrictions apply to this equipment as it uses button/coin cell batteries:

The equipment is intended to be used in trades, professions or industries
The equipment is not intended for sale to the general public
The equipment is not intended to be used where children are present
You are aware that this equipment may not meet child safety testing requirements as it is not intended to be used by consumers or general public, but rather, is intended to be used in trades, professions or industries in conjunction with the limitations and restrictions listed above
You are aware that these restrictions are due to a change in A ustralian legislation in 2022 for button/coin cell batteries

Button Battery Warning

A declaration of use will need to be submitted during checkout.

The RTC module is specifically designed for Raspberry Pi. It communicated with Raspberry Pi through I2C bus. There is a Maxim DS1307 and CR1220 button cell on the board to keep the real time for a long time after the Raspberry Pi has it's power off. In order to offering a convenient way to debug, there are five pin has been setup which are 5v, 3.3v, Rxd,Txd on borad.

Features

Use Maxim DS1307 chip
Extends CR1220 button cell backup
Can be operated by a shell
Set a serial port connector
Programmable square-wave output signal
Consumes Less than 500nA in Battery-Backup Mode
Automatic Power-Fail Detect and Switch Circuitry
Programmable Square-Wave Output Signal

Parameters

Accuracy ±2ppm from 0°C to 40°C
Work voltage 5V
Battery Backup Input for Continuous Time keeping
Real-Time Clock Counts Seconds, Minutes, Hours, Day, Date, Month, and Year with Leap Year • Compensation Valid Up to 2100
Work temperature 0°C to 70°C

Part List

1 x RTC Module
