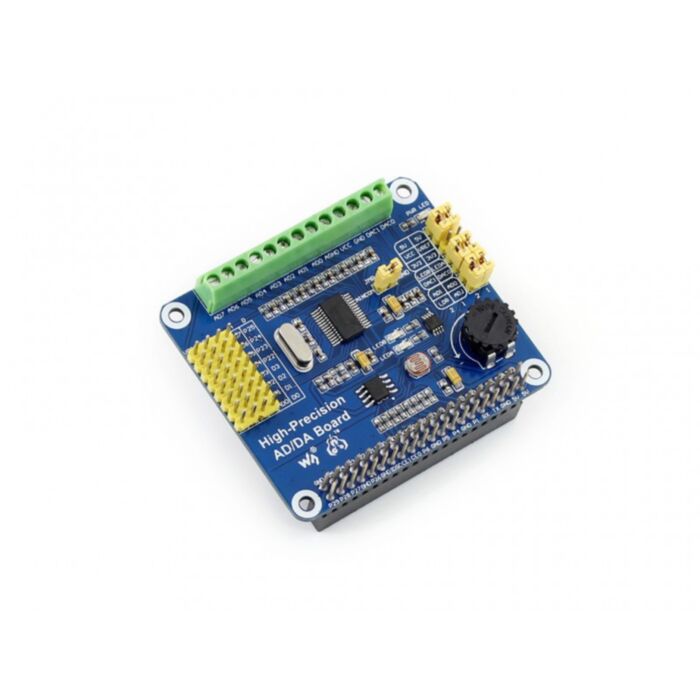

Raspberry Pi High-Precision AD/DA Expansion Board
Available with a lead time
Expect dispatch between Feb 03 and Feb 05
The Raspberry Pi lacks AD/DA functionality on its GPIO interface, which can be a challenge during development. The High-Precision AD/DA Board solves this issue, adding high-precision AD/DA functions to the Raspberry Pi.
Features
- Standard Raspberry Pi 40PIN GPIO extension header, compatible with Raspberry Pi series boards and Jetson Nano.
- Onboard ADS1256, 8-channel 24-bit high-precision ADC (4 differential inputs) with a 30ksps sampling rate.
- Onboard DAC8552, 2-channel 16-bit high-precision DAC.
- Pinheaders for analog signal input, compatible with Waveshare sensor interface standard for easy sensor module integration.
- Screw terminals for analog/digital signal input/output.
- Features AD/DA detection circuits for signal demonstration.
What's on Board
- Raspberry Pi GPIO interface: For connecting with the Raspberry Pi.
- AD/DA input/output: Screw terminals.
- AD input: Pinheaders compatible with Waveshare sensor interface standard for connecting analog sensor modules.
- 7.68M crystal: Provides a stable clock source.
- LM285-2.5: Reference voltage provider for the ADC chip.
- Photoresistor: Integrated for demonstrations.
- LED output indicator: For signal activity visualization.
- 10K potentiometer: Allows for variable resistance adjustments.
- DAC8552: 16-bit high-precision DAC with 2 channels.
- Power indicator: Displays power status.
- ADS1256: 24-bit high-precision ADC with 8 channels (4 differential inputs).
- ADC testing jumper: For diagnostic purposes.
- DAC testing jumper: For diagnostic purposes.
- Power selection jumper: Configures power input source.
- ADC reference ground configuration: When AD is single-ended, AINCOM acts as a reference terminal and can connect to GND or an external reference voltage.
Interface Definition
| Pin | Symbol | Description |
|---|---|---|
| 1, 17 | 3.3V | Power supply (3.3V) |
| 2, 4 | 5V | Power supply (5V) |
| 6, 9, 14, 20, 25, 30, 34, 39 | GND | Ground |
| 11 | DRDY | ADS1256 data ready output, low active |
| 12 | RESET | ADS1256 reset input |
| 13 | PDWN | ADS1256 sync/power off input, low active |
| 15 | CS0 | ADS1256 chip select, low active |
| 16 | CS1 | DAC8552 chip select, low active |
| 19 | DIN | SPI data input |
| 21 | DOUT | SPI data output |
| 23 | SCK | SPI clock |
| 31, 33, 35, 37 | GPIO | Extended to sensor interface |
Photos
Back view- Connecting with Raspberry Pi A+
- Connecting with Raspberry Pi 2 B
- Connecting with sensors
Back view
Connecting with Raspberry Pi A+
Connecting with Raspberry Pi 2 B
Connecting with sensorsNote: The Raspberry Pi and sensors shown in the images are not included.
