Quad Alphanumeric Display - Blue 0.54 Digits w/ I2C Backpack

Rating:
100% of 100
SKU: ADA1912 Brand: Adafruit
Display, elegantly, 012345678 or 9! Gaze, hypnotized, at ABCDEFGHIJKLM - well it can display the whole alphabet. You get the point. This is a nice, bright alphanumeric...
$28.50 AUD, inc GST
$25.91 AUD, exc GST

Available with a lead time
Expect dispatch between Apr 05 and Apr 08

Quantity Discounts:

  • 10-25 $24.87 (exc GST)
  • 25+ $24.09 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Favourite product

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

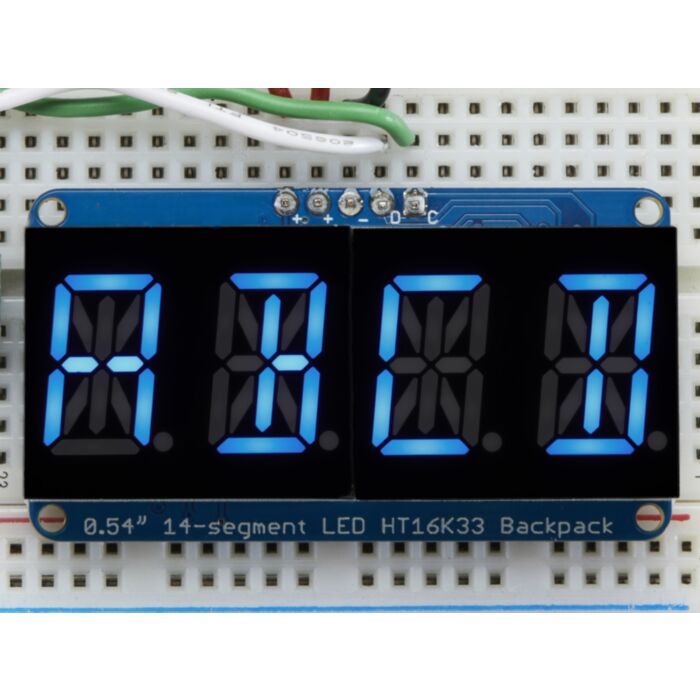

Display, elegantly, 012345678 or 9! Gaze, hypnotized, at ABCDEFGHIJKLM - well it can display the whole alphabet. You get the point. This is a nice, bright alphanumeric display that shows letters and numbers in a beautiful blue hue. It's super bright and designed for viewing from distances up to 23 feet (7 meters) away. Digits have seven white segments on a black surface and Adafruit give you a set of two alphanumeric displays as well as a driver board so you can make a clock or a four letter word.

Like Adafruit's other LED backpacks, these are end-to-end stackable and by soldering the address jumpers on the back you can have up to 8 backpacks all sharing the same two I2C wires!

This product comes with:

A bit of soldering is required to attach the matrix onto the backpack but its very easy to do and only takes about 5 minutes. Of course, in classic Adafruit fashion, We also have a detailed tutorial showing you how to solder, wire and control the display. If you've been eying alphanumeric displays but hesitated because of the complexity, this is the solution you've been looking for!

Click here for the version that's just the alphanumeric displays! (no backpack)

Technical Details

This board/chip uses I2C 7-bit addresses between 0x70-0x77, selectable with jumpers.

Alphanumeric Display Dimensions:

  • 21mm x 25mm x 7mm / 0.8" x 1" x 0.3"
  • Height w/ Pins: 14mm / 0.6"
  • Weight: 4.7g

Backpack Dimensions:

  • 28mm x 51mm x 4mm / 1.1" x 2" x 0.2"
  • Weight: 5.5g

EagleCAD PCB files, datasheets, Fritzing objects and more in the tutorial

This product is listed in:

Components & Parts>LEDs>Segment
