PWRCAN 13.2 Module: Isolated 2-Ch CAN & 1-Ch RS485

SKU: CE09914 Brand: M5Stack

CAN- or RS485-controlled GPIO - great for robots or protocol conversion.

$50.45 AUD, inc GST

$45.86 AUD, exc GST

Available with a lead time
Expect dispatch between Jan 01 and Jan 12

Quantity Discounts:

6+ $44.03 (exc GST)
12+ $42.65 (exc GST)

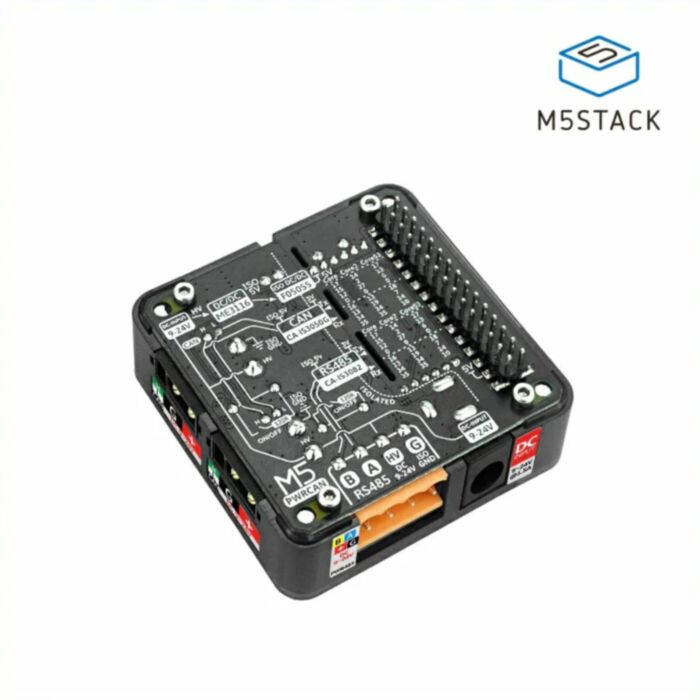

The PwrCAN Module 13.2 is a multifunctional module designed for the PwrCAN bus, integrating isolated CAN communication and DC 9-24V power bus. The module also includes Pwr485 (with isolation) bus functionality and can provide isolated 5V power supply to the M5 host. The CAN communication part uses the CA-IS3050G isolated transceiver, and the RS485 part uses the CA-IS3082W isolated transceiver. The GPIOs related to CAN and RS485 communication can be selected through dip switches, and the 120-ohm terminal resistance at the CAN and RS485 outputs can also be selected through dip switches. The module's power bus supports DC 9-24V wide voltage input, with the DC socket directly connected to the HT3.96 and XT30 power parts. The built-in isolated power module F0505S-2WR3 provides power to the M5 host. This module is suitable for fields such as robot control, protocol conversion, industrial automation, automotive communication systems, intelligent transportation, and building automation.

Product Features

Isolated CAN bus (dual channel)
Isolated RS485 bus
Signal isolation
Power isolation supply
Multiple power interfaces
Wide voltage input range (9-24V)
CAN/RS485 communication pin switching dip switch

Contains

1x PwrCAN Module 13.2
1x HT3.96-4P
1x XT30(2+2)PW-M cable

Applications

Robot control
Protocol conversion
Industrial automation
Automotive communication systems
Intelligent transportation
Building automation

Specifications

Specification	Parameters
Supported Protocols	CAN & RS485 bus communication protocols
CAN Communication	CA-IS3050G@dual channel
RS485 Communication	CA-IS3082W@single channel
CAN Interface	XT30(2+2)PW-M horizontal solder pin male head
RS485 Interface	HT3.96-4P
CAN Bus Speed	Maximum 1Mbps
RS485 Bus Speed	Maximum 500Kbps
CAN Supported Nodes	110 nodes
RS485 Supported Nodes	256 nodes
Voltage Input Range	9-24V
Power Supply Method	DC power socket (5.5/2.1mm, inner positive outer negative), 485 interface (HT3.96) power supply, CAN interface (XT30) power supply
Operating Temperature	0-40°C
Product Dimensions	545419.7mm
Package Dimensions	1369219.7mm
Product Weight	27.7g
Package Weight	52.4g
