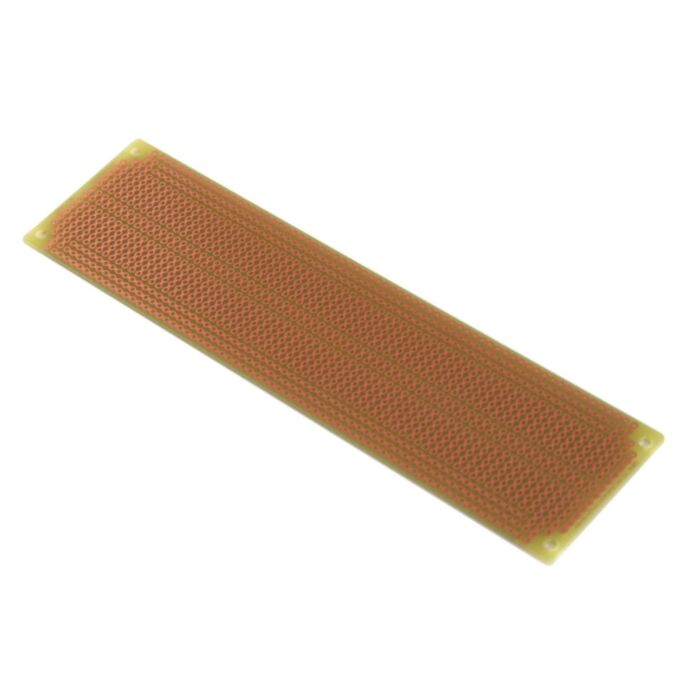

Professional Solderable PCB Breadboard - 830 point (Mounting Holes)

Rating:
100% of 100
SKU: CE07067
The SB830 Solderable PCB BreadBoard enables you to transfer your circuit and wires from a plug-in breadboard without recutting wires or changing your layout.
$12.95 AUD, inc GST
$11.77 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 26th of Nov

Quantity Discounts:

  • 10-50 $11.18 (exc GST)
  • 50+ $10.83 (exc GST)
- +

405 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Favourite product

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

The SB830 Solderable PCB BreadBoard enables you to transfer your circuit and wires from a plug-in breadboard without recutting wires or changing your layout.

The SB830 has the same pattern and spacing as a standard 830 connection point BB830 solderless plug-in breadboard. It has a standard 5-hole strip for each IC pin, just like solderless breadboards. However, it has the advantage that soldered joints provide a more reliable long-term connection than solderless contacts. The SB830 has four power rails like solderless breadboards, plus two bonus rails for power or signals. There are bonus two-hole pads along the centerline allowing DIL (dual in-line) headers to be used. A top side silkscreen helps to position components. Four mounting holes allow your projects to be secured. BPS prototyping boards use high-quality FR4 glass epoxy PCBs for long life. An anti-tarnish coating protects the copper for a long shelf-life and provides easy soldering.

BPS boards are lead-free and RoHS compatible.

Features

  • Same pattern as a standard 830 connection point BB830 solderless plug-in breadboard.
  • Single-sided high-quality FR4 glass-epoxy circuit board.
  • 1oz/ft2 copper with an anti-tarnish coating for easy soldering. Lead free and RoHS compatible.
  • 1258 holes, 0.042" holes are drilled on 0.1" (2.54mm) centers. 4 mounting holes.
  • 7.25 x 1.85in (184.2 x 47.0mm), 1/16" thick (1.6mm)
