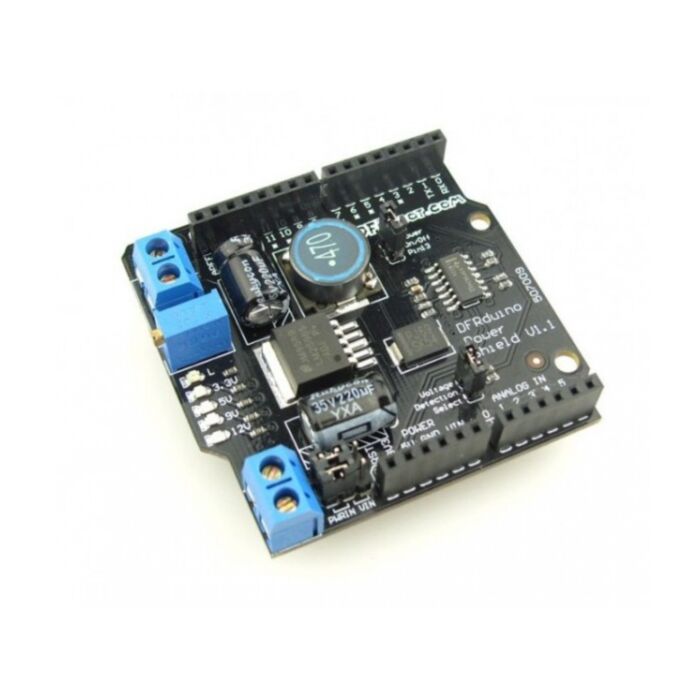

Power Shield (Arduino Compatible)

SKU: DFR0105

$29.75 AUD, inc GST
$27.05 AUD, exc GST

More Views

Power Shield (Arduino Compatible)
29.75 AUD

SKU: DFR0105

$29.75 AUD, inc GST
$27.05 AUD, exc GST
Shipping Offer

Shipping:

  • $6.95 Standard (2-4 days, tracked)
  • $8.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Introduction

Most project of Arduino may need more than two voltage supply. When feed with from 4.5-35V, this power shield able to provide a voltage range from 1.25-12V with 3A peak current. Ideal for servo control and other non-standard components. With this shield, your Arduino now have one power supply for all.

It has be build-in voltage measuring function which mapping the output voltage to Arduino analog pin 0. It can be controlled by Arduino digital Pin13 to switch on/off.

Specification

  • Supply voltage:4.5-35V
  • Output voltage:1.25-12V
  • Output current: 2A (3A peak)
  • Max output power: 15W [email protected]
  • Efficiency:90%
