Pololu Universal Aluminum Mounting Hub for 5mm Shaft, #4-40 Holes (2-Pack)

SKU: POLOLU-1203

$9.40 AUD, inc GST
$8.55 AUD, exc GST

More Views

Pololu Universal Aluminum Mounting Hub for 5mm Shaft, #4-40 Holes (2-Pack)
9.4 AUD

SKU: POLOLU-1203

$9.40 AUD, inc GST
$8.55 AUD, exc GST
1 reviews 0 5 3
In stock, ships today if ordered before 2PM
Delivered by Mon, 28th of Aug
Shipping Offer

5mm Pololu universal aluminum mounting hub on a stepper motor with a 5mm-diameter output shaft.

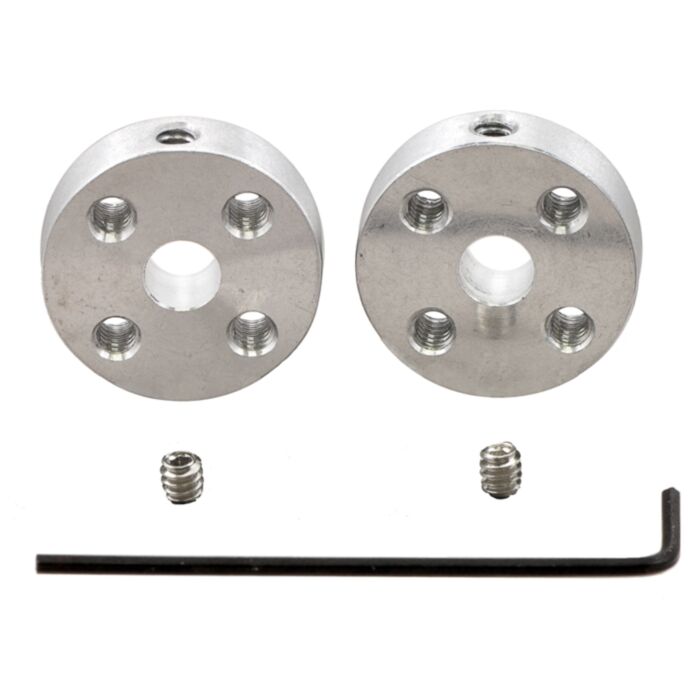

These universal mounting hubs are designed to work with most 5 mm diameter shafts, including round shafts and “D” shafts, such as those on Pololu's stepper motors. Each of the two included hubs has four mounting holes for #4-40 screws (not included), letting you mount custom wheels or mechanisms to your motors. The two included #4-40 hex set screws (one for each hub) allow secure coupling of shaft to hub, and a 0.05″ hex wrench (often the smallest size in SAE Allen wrench sets) is included for use with the set screws. A dimension diagram of the hub is available under the resources tab.

These hubs will work with most of Pololu's stepper motors (the ones with 5 mm shafts), and they also work with 60 mm, 70 mm, 80 mm, and 90 mm Pololu wheels.

Pololu wheels with 90, 80, 70, and 60mm diameters in three colors: blue, red, and yellow.
Documentation and Resources:

Product Comments


Customer Reviews

  1. Review by Alan - Good hubs, screws sold separately verified purchaser
    Rating
    60

    The "Pololu Universal Aluminum Mounting Hub for 5mm Shaft, #4-40 Holes" fits the "Pololu Wheel 90x10mm Pair".

    Only problem is that the #4-40 bolts are not provided (unlike other sized Pololu hubs I have bought)!
    Okay big deal? Well yes as Australia is all metric and these bolts just cannot be found at a local hardware store.

    Would be really nice if 5 #4-40 bolts were also provided (only 2 actually is required for the Pololu wheel).




    **Core Electronics reply from Graham**
    Thanks Alan, we certainly sell those items separately, not all customers *need* them so perhaps that is why Pololu sell them this way. (Posted on 15/04/2016)
