Breakout for JST SH-Style Connector, 4-Pin Male Top-Entry (2-Pack)
Available with a lead time
Expect dispatch between Jun 23 and Jun 26
Details for item #4814

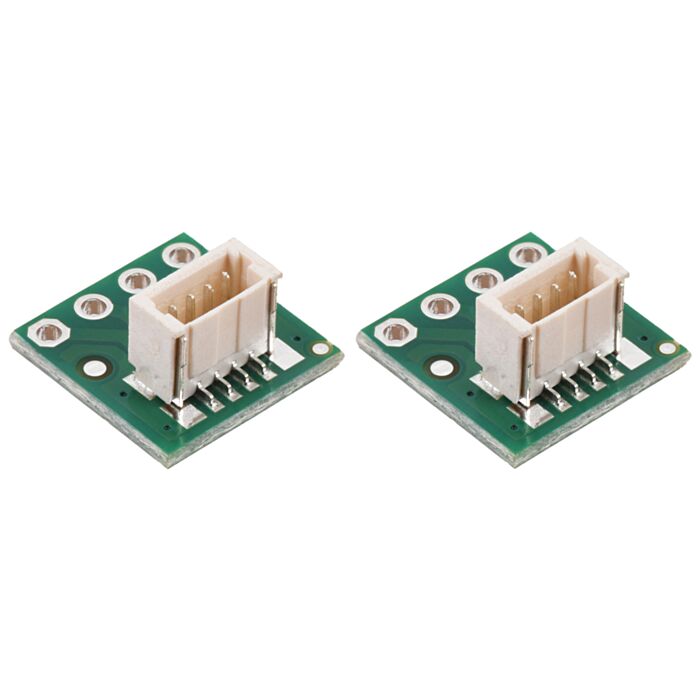

This product is a 2-pack of JST SH-style connector adapter boards featuring a top-entry connector.
|
|
|
Pololu have various cables that work with these breakout boards that are available in double-sided or single-sided versions of varying lengths. The double-sided versions have twisted wires and female JST SH-type connectors on both ends, and single-sided versions have a female connector on one end and unterminated wires on the other.
| Pins | Terminations | Length | Item # | ||
|---|---|---|---|---|---|
 | 4 | double-sided (female-female) | 10 cm (4") | #5523 | |
| 16 cm (6.3") | #5524 | ||||
| 25 cm (10") | #5525 | ||||
| 40 cm (16") | #5526 | ||||
| 63 cm (25") | #5527 | ||||
| single-sided (female-unterminated) | 12 cm (4.5") | #5520 | |||
| 30 cm (12") | #5521 | ||||
| 75 cm (30") | #5522 | ||||
Breakout for JST SH-style connector family overview
Pololu's JST SH-type connector breakout boards provide access to each pin on a row of 0.1"-pitch through holes, making them compatible with standard solderless breadboards. They are available in a variety of pin counts and connector styles.
| Top entry | Side entry |
|---|---|
| 2-pin | |
 |  |
| 3-pin | |
 |  |
| 4-pin | |
 |  |
| 5-pin | |
 |  |
| 6-pin | |
 |  |
The connectors are rated for up to 1 A and 50 V and are compatible with Pololu's female JST SH-style cables. The through-holes work with standard 0.1" (2.54 mm) male headers and 0.1" female headers, which are available separately:
|
|
|
Additionally, all versions of these boards except the 6-pin side-entry variation will work with Pololu's 0.1" screw terminal blocks.
 |
Dimensions
| Size: | 0.415" × 0.40" × 0.21" |
|---|---|
| Pins: | 4 |
| Weight: | 0.3 g1 |
General specifications
| Current rating: | 1 A |
|---|---|
| Voltage rating: | 50 V |
| Connector: | top-entry, JST SH-type |
Identifying markings
| PCB dev codes: | con06a |
|---|---|
| Other PCB markings: | 0J15615 |
Notes:
- 1
- Per board.
File downloads
Dimension diagrams for the JST SH-Style Connector Breakout Boards (1MB pdf)
3D models of the JST SH-Style Connector Breakout Boards (6MB zip)
Drill guides for the JST SH-Style Connector Breakout Boards (4k zip)
These DXF drawings show the locations of all of the holes for boards con1a, con04a, con05a, con06a, and con07a.
