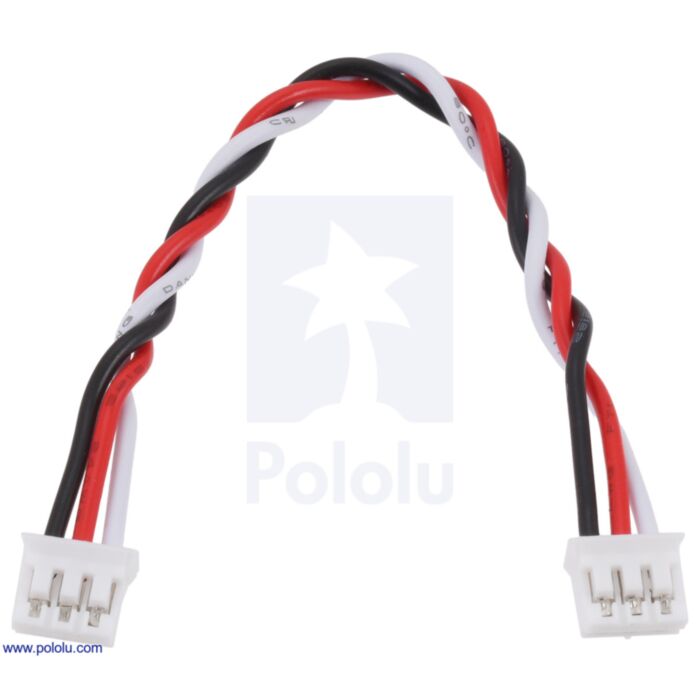

JST PH-Style Cable, 3-Pin, Female-Female, 10cm

SKU: POLOLU-5613 Brand: Pololu
This 3-conductor, 10 cm (4") cable has 24 AWG wires and 3-pin female JST PH-type connectors (2mm pitch) on both ends...
Special Price $3.30 AUD, inc GST
Regular Price $3.40 AUD, inc GST
$3.00 AUD, exc GST
Special pricing ends 28 October 2025
* this special may end earlier than shown

Available with a lead time
Expect dispatch between Aug 07 and Aug 11

- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Details for item #5613

This 3-conductor, 10 cm (4") cable has 24 AWG wires and 3-pin female JST PH-type connectors (2mm pitch) on both ends.

JST PH-Style Cable, 3-Pin, Female-Female, 10cm.

JST PH-style cable family overview

Pololu's JST PH-style cables are available in a variety of pin counts and lengths. Double-sided versions are available with twisted wires and female JST PH connectors on both ends, and single-sided versions are available with a JST PH connector on one end and female crimp pins for 0.1" housings on the other.

These crimp pins, which are the same as those on Pololu's wires with pre-crimped terminals, are compatible with Pololu's assortment of crimp connector housings (see the pictures below for some examples) and work with standard 0.1" male headers. The crimp pins can be cut off if they are not needed, and remember that the double-sided cables can also be cut in half to get single-sided cables that are 5 cm, 8 cm, and 20 cm long.

The JST PH-style connector has a 2 mm pitch, and the cables are made from 24 AWG wires that conform to UL 1007. They are rated for 2 A and 100 V. For all versions in the following table, the black wire connects to pin 1 and the red wire connects to pin 2. The 4-pin cables are physically compatible with Adafruit’s STEMMA connectors, but note that the wire color order is different (Adafruit’s cables have the black and red wires on pins 4 and 3, respectively).

Dimensions

Pins: 1×3
Pitch: 2 mm
Length: 10 cm
Weight: 1.6 g

General specifications

Gender: Female-Female
Wire gauge: 24 AWG
Current rating: 2 A
Voltage rating: 100 V
Connector: JST PH-type
Terminations & length: JST PH to JST PH, 10 cm
