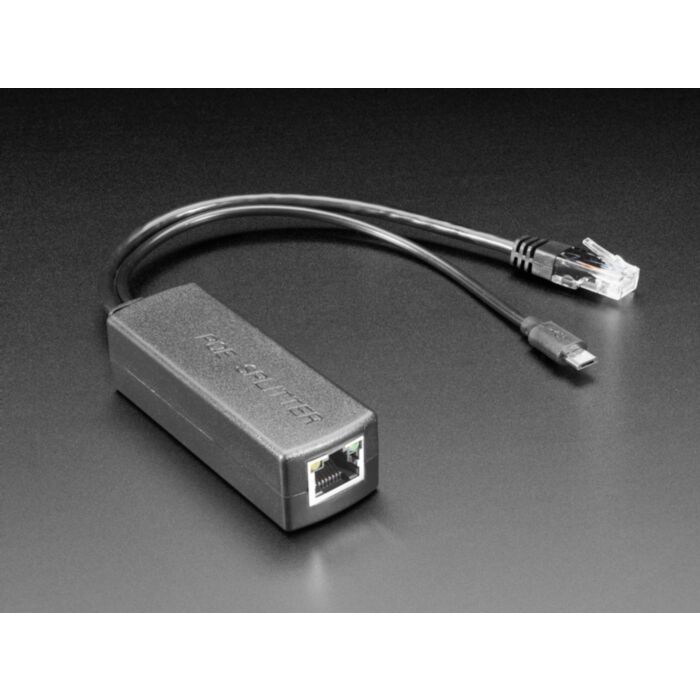

PoE Splitter with MicroUSB Plug - Isolated 12W - 5V 2.4 Amp

Rating:

100% of 100

SKU: ADA3785 Brand: Adafruit

Power over Ethernet (PoE) splitters can make your project wiring a breeze - and best of all they work to connect any 802.3af-capable router to any Ethernet device...

$26.80 AUD, inc GST

$24.36 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 23rd of Apr

Quantity Discounts:

10-25 $23.39 (exc GST)
25+ $22.65 (exc GST)

Power over Ethernet (PoE) splitters can make your project wiring a breeze - and best of all they work to connect any 802.3af-capable router to any Ethernet device, even if it doesn't natively support PoE! The splitter takes a unified PoE signal (data and power) from one RJ-45 cable, and then separates the data (Ethernet) and power (5 VDC regulated) into two different lines for non-PoE devices.

This is an economical, practical, high-performance, and reliable Isolated 5V 2.4A PoE Splitter with MicroUSB Plug based on IEEE 802.3af standard. It can divide power and data signals from a network cable, and can be used with any PoE injector that is compatible with IEEE 802.3af, and supply power and data for non-PoE network equipment.

Whew, that's quite a few words - but basically: Connect this to your PoE switch or hub, then on the other side of the Ethernet cable, you'll get Ethernet and a high quality 5V power supply, up to 2.4 Amps.

This is perfect for use with a Raspberry Pi model B, B+, Pi 2 or Pi 3 since those have Ethernet and micro USB power, and 2.4 Amp is plenty of current for even the most accessorized Pi. (It isn't a good match for the Pi Zero or A+ because those don't have Ethernet, although you could use an Ethernet hub.) It also works great with Arduino boards and compatibles that have Ethernet and micro USB like the Seeed Cloud or an Arduino-compatible with an Ethernet shield - just check that the compatible has a micro USB power input! It would also be a perfect addition to a Feather with Adafruit's Ethernet Feather attached.

Please note that like many active PoE splitters, there's a minimum load requirement of at least 100mA on the 5V power supply. Adafruit don't think this is going to be a problem since anything with Ethernet will tend to draw 200mA+, but please keep it in mind!

For use only with true 802.3af routers! If you don't have a PoE injector / hub / router, check out Adafruit's passive PoE cable kit.

Technical Details

Ethernet cable length: 205mm / 8"
MicroUSB cable length: 205mm / 8"
Body dimensions: 80mm x 30mm x 24mm / 3" x 1" x .8"
Product Weight: 54.1g / 1.9oz

Features:

IEEE 802.3af compliant
Supports 10/100M data transmission (not for Gigabit ethernet)
Supports 48V Unsolicited Power Over Ethernet PoE Switches/Hubs/Adapters with a 44V-57V power voltage input
Operation temperature: 20°C - 45°C
Storage temperature:- 30°C - 70°C
Isolation: 2.5kV
Power Input: 44~57V DC
Power Output: 5V DC 2.4A
