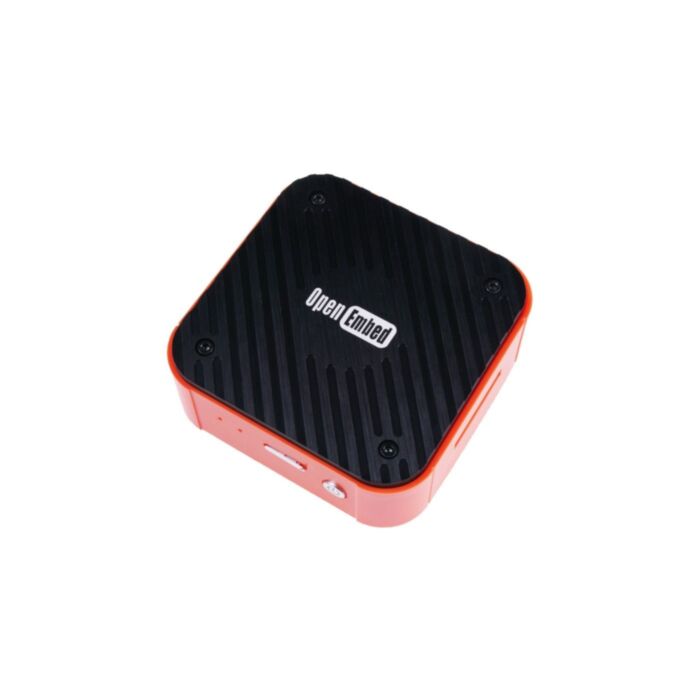

PIzza Raspberry Pi CM4 Mini PC with 4GB RAM, 32GB eMMC and 2.4/5GHz WiFi

SKU: SS102991561 Brand: Seeed Studio

PIzza is a micro server based on the Raspberry Pi Compute Module 4, designed for makers and commercial applications alike. With diverse connectivity...

$394.95 AUD, inc GST

$359.05 AUD, exc GST

Quantity Discounts:

3-6 $344.68 (exc GST)
6+ $333.91 (exc GST)

Out of Stock

Features

Powered by Raspberry Pi Computer Module 4 (CM4) running up to 1.5GHz
Diverse network connectivity options

Dual-band 2.4GHz/5GHz WiFi
Dual Gigabit Ethernet ports
4G/LTE communication via mini PCIe (other modules supported)

Expandable Storage: M.2 NVME Socket for SSD Expansion
Multimedia Ready: HDMI Output at up to 4Kp60
Integrated Thermal Management: Aluminum Heatsink with ABS Body

The PIzza is a microserver powered by the Raspberry Pi Compute Module 4. It is designed for the easy setup and quick deployment for typical commercial and lightweight industry applications, including smart homes, 4G/LTE routers, digital signages and SD-WAN. Furthermore, it can be used as a user-friendly mobile or portable OpenWRT VPN solution, which will be well supported by the CM4’s quad-core ARM Cortex A72 processor and dual gigabit ethernet ports. With the built-in NVME socket, you can easily use the PIzza as a Network-Attached Storage (NAS) or multimedia center in your home. You’ll be able to seamlessly access media files from multiple devices, or push them to the TV via the included HDMI interface at up to 4K resolution.

Applications

IoT Gateway
Lora/Zigbee Gateway
4G/LTE Router
Software Router
SD-WAN APPs
Network-Attached Storage (NAS)
Multimedia Server
Virtual Private Networks (VPNs)
Bitcoin Nodes
Digital Signage
Smart Home Applications

Specifications

Specification

Details

CPU
Broadcom BCM2711, Quad core Cortex-A72 64-bit SoC @ 1.5GHz

Memory
4GB LPDDR4-3200 SDRAM

Storage
32GB eMMC
M.2 socket for NVMe SSD up to 2TB

Wireless
2.4 GHz, 5.0 GHz IEEE 802.11 b/g/n/ac
Bluetooth 5.0, BLE

Video Interface
HDMI 2.0a (up to 4kp60 supported)

Interfaces
2 × RJ45 ethernet port support 10/100M/1000M
2 x USB 2.0 Port
2 x HDMI 2.0a
1 x mini-PCIe socket with SIM card support
1 x M.2 socket with 2280 NVME SSD support
40 pin standard Raspberry PI HAT connector (Adaptor line needed )

Power Supply
5V/3A power supply via type-C port

Dimensions
98mm x 98mm x 38mm

Operating Temperature
0°C to +60°C

Storage Temperature
-20 °C to +70 °C

Certifications
CE, FCC

Additional Features
Built in RTC with Supercap (optional)
Cryptographic Encryption with ATECC608a Chip (optional)

Part List

1 x PIzza Raspberry Pi CM4 Micro Server with 4GB RAM, 32GB eMMC and 2.4/5GHz WiFi
