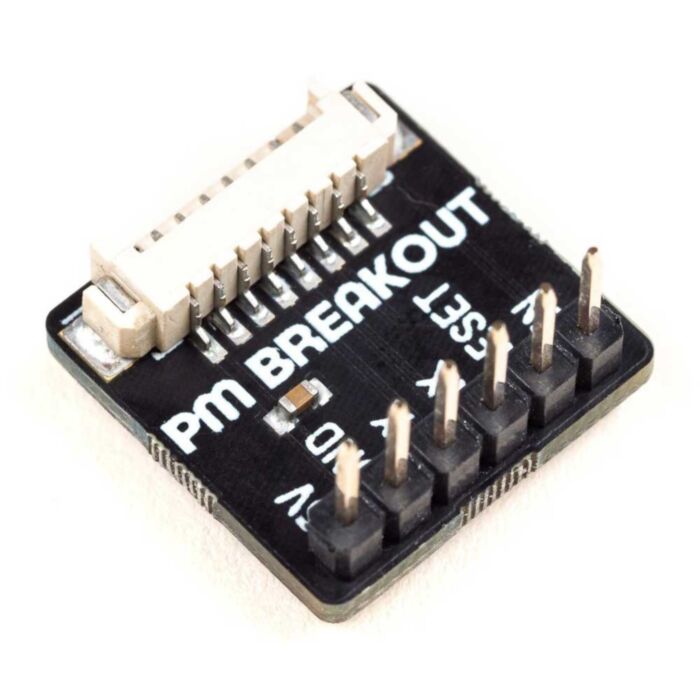

Pimoroni Particulate Matter Sensor Breakout (for PMS5003)

SKU: PIM477 Brand: Pimoroni

A handy-dandy breakout that converts between the picoblade connector cable on the PMS5003 particulate matter sensor and a standard male 2.54mm pitch header.

$7.80 AUD, inc GST

$7.09 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
The shipping address needs to be in the AusPost next day network and eParcel Express is chosen during checkout. On rare occasions, orders may be delayed by up to one business day due to AusPost pickup timings or for order verifications.

Quantity Discounts:

10-25 $6.88 (exc GST)
25+ $6.74 (exc GST)

A handy-dandy breakout that converts between the picoblade connector cable on the PMS5003 particulate matter sensor and a standard male 2.54mm pitch header.

Use this breakout to connect a PMS5003 particulate matter sensor straight to your Raspberry Pi (or other microcontroller) with some female-to-female jumper jerky, using our PMS5003 Python library to read data from the sensor.

Connect the pins on the breakout to the following pins on your Raspberry Pi:

5V to 5V
GND to ground
TX to BCM 14
RX to BCM 15
RESET to BCM 27
EN to BCM 22

Dimensions: 17.7x17.75mm
