PB86 Step Switch Breadboard-Friendly Breakout PCB - Pack of 12

SKU: ADA5631 Brand: Adafruit

A couple of months ago we started carrying packs of colorful step switches reminiscent of the 16-step sequencer keys on TR-808 synthesizers. We gave folks...

$8.90 AUD, inc GST

$8.09 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 26th of Nov

Quantity Discounts:

10-25 $7.76 (exc GST)
25+ $7.53 (exc GST)

A couple of months ago Adafruit started carrying packs of colorful step switches reminiscent of the 16-step sequencer keys on TR-808 synthesizers. Adafruit gave folks the heads up that the switches are not breadboard or perf-board friendly i.e. would need to either be hand-wired or designed into a PCB.

And then Adafruit heard LCD Soundsystem is coming back on tour - so they sold Adafruit's guitars to buy turntables & got cracking on a break-apart panel of step-switches to evoke the spirit of electronic music and DIY venues.

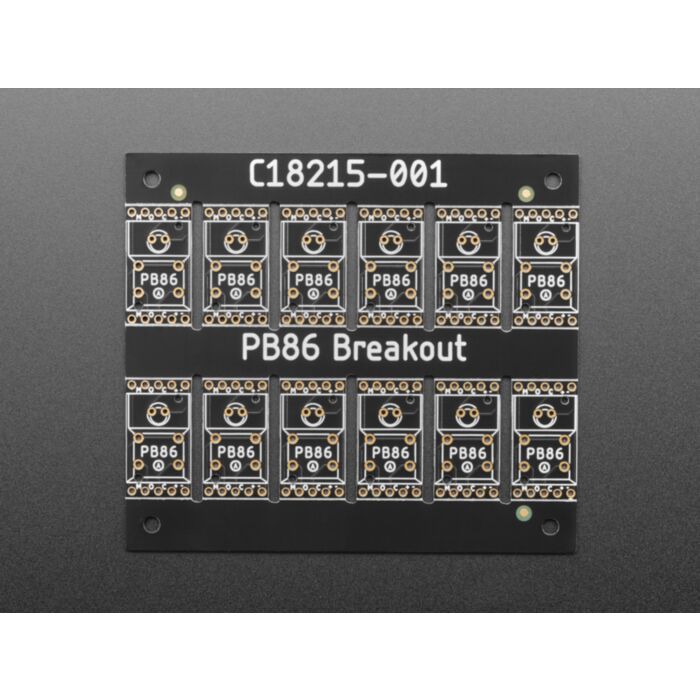

Each panel comes with 12 individual breakouts to solder up and assemble to your favorite breadboard, perf-board, etc. It's a ton easier than trying to get a drink order in at the club in Bushwick, you get an easy way to get started on a DIY synth project!

Please note, each order comes with one sheet of assembled PCBs that can be broken apart - Adafruit include top and bottom railing bits to help keep it nice and flat during shipment.

Does not include headers which you'll need if you're going to plug these into a breadboard
