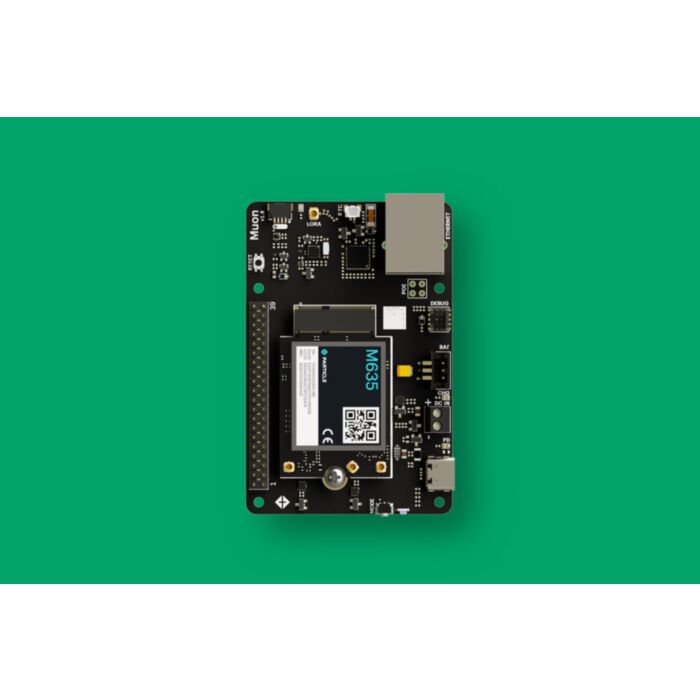

Particle Muon 7-in-1 IoT Development Kit

SKU: CE10016 Brand: Particle

Explore Particle's Muon multi-radio development board featuring integrated cellular, Wi-Fi, BLE, GNSS, satellite, LoRaWAN, and Ethernet connectivity in a Raspberry Pi-compatible form factor with full IoT platform support.

$109.95 AUD, inc GST

$99.95 AUD, exc GST

Quantity Discounts:

5-10 $96.95 (exc GST)
10+ $94.95 (exc GST)

Out of Stock

Restrictions apply to this RF Equipment for use in Australia:

Only to be operated on 433Mhz / 915-930Mhz / 2.4Ghz (check the product description for compatible frequency ranges).
If operating outside of shared frequencies or in such a way that is beyond low interference potential devices are intended to function, then you have obtained the appropriate authorisation to do so.

For use in other locations around the world:

Follow region-specific frequency spectrum rules.

A declaration of use will need to be submitted during checkout.

The Particle Muon Multi-Radio IoT Kit represents a significant advancement in IoT development, offering unprecedented connectivity options in a single, versatile platform. This revolutionary development board combines cellular, Wi-Fi, BLE, GNSS, satellite, LoRaWAN, and Ethernet connectivity in a Raspberry Pi-compatible form factor, eliminating the complexity of managing multiple connectivity solutions.

Key Features

Integrated multi-radio connectivity including:
- Cellular connectivity with LTE CAT 1
- Wi-Fi 802.11a/b/g/n (2.4GHz and 5GHz)
- Bluetooth 5 (LE)
- GNSS positioning
- NTN satellite communication
- LoRaWAN
- Ethernet
Raspberry Pi form factor compatibility
Seamless transition path from prototype to production with M-SoM
Pre-integrated cloud connectivity with Particle IoT Platform
Built-in device management and OTA update capabilities

Technical Specifications

Processing: Arm Cortex-M33 CPU, 200MHz
Memory: 2MB application flash, 3MB RAM
Power Input Options:
- USB-C
- VIN (6-12 VDC)
- LiPo battery with temperature sensor (3-pin JST-PH)
Integrated Sensors:
- Temperature sensor
- Real-time clock
- Watchdog chip

How to Use

Getting started with the Muon is straightforward. The board can be powered via USB-C, external power supply, or LiPo battery. Development can begin immediately using the Particle IoT Platform, which provides a comprehensive development environment including IDE access, device management tools, and OTA update capabilities. For expanded functionality, connect additional sensors or actuators using the QWIIC connector or standard GPIO pins.

For prototype to production transition, projects can be easily migrated from the Muon to the M-SoM using the Particle Device OS hardware abstraction layer, ensuring a smooth scaling process for production deployments.

What's in the Box

Muon Carrier Board
M-SoM
Antenna Package:
- PARANTGN1 GNSS antenna
- PARANTCW1 wide band cellular antenna
- PARANTWM1 Wi-Fi/BLE antenna
- LoRaWAN antenna
USB 2.0 C-to-C PD cable
SMA female to IPEX MHF1 cable
3250mAh single cell battery with 3-pin connector
Plastic case
Mounting standoffs

Compatibility

The Muon is compatible with the Raspberry Pi ecosystem, supporting a wide range of accessories including expansion cards, hats, and enclosures. For cellular connectivity, the board works with the Hologram Hyper eUICC Global IoT SIM Card, enabling worldwide cellular coverage. The board can be expanded with various sensors, including the SparkFun TMP36 Temperature Sensor for environmental monitoring applications.

Additional Resources

Complete Muon Datasheet

About Particle

Particle is a leading IoT platform provider that specialises in creating enterprise-grade IoT development tools and connectivity solutions. Their integrated approach combines hardware, connectivity, and cloud services to simplify the development and deployment of IoT products. Particle's platform is trusted by thousands of companies worldwide for mission-critical IoT deployments.
