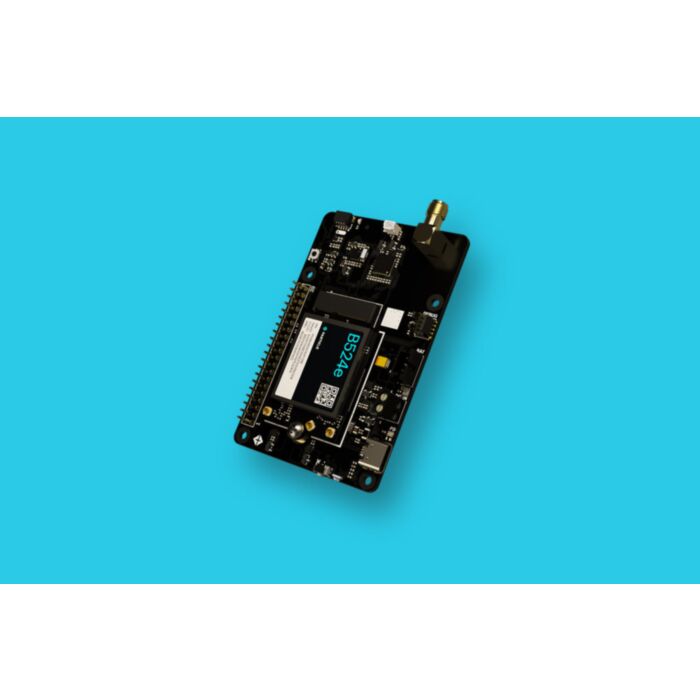

Particle M-HAT LTE IoT HAT for Raspberry Pi
Out of Stock
Sign up to get notified when it's available to order.
Restrictions apply to this RF Equipment for use in Australia:
- Only to be operated on 433Mhz / 915-930Mhz / 2.4Ghz (check the product description for compatible frequency ranges).
- If operating outside of shared frequencies or in such a way that is beyond low interference potential devices are intended to function, then you have obtained the appropriate authorisation to do so.
For use in other locations around the world:
- Follow region-specific frequency spectrum rules.
A declaration of use will need to be submitted during checkout.
Transform your Raspberry Pi into a powerful IoT gateway with the Particle M-HAT LTE IoT HAT. This power-optimized expansion board integrates advanced cellular connectivity, sophisticated power management, and edge computing capabilities into a single, stackable solution. The M-HAT enables seamless deployment of AI models at the edge while ensuring reliable connectivity and extended device uptime through its multi-power source support and intelligent power management features.
Key Features
- Dual SMA antenna connectors for robust cellular connectivity
- Integrated battery charger with multi-power source support (PoE, DC, USB-C PD, and battery)
- Ultra-low power sleep modes with dedicated wake pin
- Stackable design with extended 40-pin female connector
- Built-in support for Raspberry Pi models 3, 4, and 5
- Precision power control through PFET implementation
- Real-time clock and watchdog chip for system monitoring
- External TPM for enhanced security
Technical Specifications
- UART interface supporting 921k baud rate
- Power input options:
- USB-C
- VIN (6-12 VDC)
- LiPo battery with temperature sensor (3-pin JST-PH)
- Cellular Connectivity:
- LTE Cat 1 module with 2G and 3G fallback
- Frequency bands: 900, 1800, and 2100 MHz (EMEA region)
- Integrated GNSS positioning system
- 2x QWIIC connectors for I2C expansion
How to Use
Installation is straightforward through the stackable design. Mount the M-HAT directly onto your Raspberry Pi's GPIO pins. For optimal performance, connect the provided antennas to the SMA connectors. Power can be supplied through any of the supported input methods - USB-C, DC input, or battery. The Waveshare SIM7600G-H M.2 4G HAT can be used as an alternative for different regional requirements.
The board interfaces with your Raspberry Pi through standard GPIO connections, while the QWIIC connectors enable easy integration of I2C sensors and peripherals. For power-sensitive applications, utilize the ultra-low power modes and wake pin functionality to optimize energy consumption.
What's in the Box
- M-HAT expansion board
- B-SoM with EtherSIM+
- Antenna kit:
- PARANTCW1 Cellular Antenna
- PARANTGN1 GNSS Antenna
- PARANTWM1 BLE Antenna
- USB 2.0 C-to-C PD cable
- 3250mAh single cell battery
- Mounting standoffs
Compatibility
| Raspberry Pi Model | Compatibility |
|---|---|
| Raspberry Pi 3 Model B/B+ | Full Support |
| Raspberry Pi 4 Model B | Full Support |
| Raspberry Pi 5 | Full Support |
About Particle
Particle is a leading provider of IoT solutions, specialising in enterprise-grade hardware and software for connected devices. Their products are designed to simplify the development and deployment of IoT projects while maintaining professional-grade reliability and security. The M-HAT continues this tradition by offering a robust platform for both prototyping and production environments.
