OV5640 Camera for Seeed Studio XIAO ESP32S3 Sense

SKU: SS114993115 Brand: Seeed Studio
This OV5640 Camera for XIAO ESP32S3 Sense (With Heat Sink) offers a wide active array from 320*240 (QVGA) up to 2592*1944 (QSXGA). It has 8/10-bit RGB RAW...
$27.25 AUD, inc GST
$24.77 AUD, exc GST

Available with a lead time
Expect dispatch between May 12 and May 12

Quantity Discounts:

  • 10+ $23.78 (exc GST)
  • 25+ $23.04 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This high-quality OV5640 Camera is customized specifically for XIAO ESP32S3 Sense. It offers a wide active array from 320*240 (QVGA) up to 2592*1944 (QSXGA). Moreover, its 8/10-bit RGB RAW output formats excel in applications requiring post-processing, meeting users' demands for raw, unprocessed image data.

The sensor comes with an auto-focusing function to help users take clear photos and videos more easily. The auto-focusing function can automatically adjust the focus distance, ensuring that the captured images and videos are always clear and sharp.

Coupled with its strong environmental adaptability, functioning effectively within a working temperature of 30? to 70? and a storage temperature range of 0? to 50?, this camera performs excellently under various environmental conditions. It is a powerful and high-performance image sensor with a range of excellent features.

Note: A heatsink is provided, please pay attention when using it, beware of burns.

Specifications

Specifications OV5640 OV2640
Lense Size 1/4 inch 1/4 inch
Pixel Size 1.4 µm x 1.4 µm 2.2um x 2.2um
Maximum resolution 2592*1944 1600*1200
Colour type Colour Colour
Output formats RAW RGB
RGB565/555/444
CCIR656
YUV422/420
YCbCr422
compression
YUV(422/420)/YCbCr422
RGB565/555
8-bit compressed data
8/10-bit Raw RGB data
Power Supply core: 1.5V ± 5% (with embedded 1.5V regulator) core: 1.2 VDC ± 5%
analog: 2.6 ~ 3.0V (2.8V typical) analog: 2.5-3.0 VDC
I/O: 1.8V / 2.8V I/O 1.7-3.3V
Guaranteed Storage Temperature 0° to 50° 0° to 50°
Guaranteed Operating Temperature -30° to 70° -30° to 70°
Maximum Image Transfer Rate QSXGA(2592*1944):15fps CIF(352*288): 60fps
1080p:30fps SVGA(800*600): 30fps
1280*960:45fps CIF(352*288): 60fps
720p:60fps
VGA (640*480):90fps
QVGA (320*240):120fps

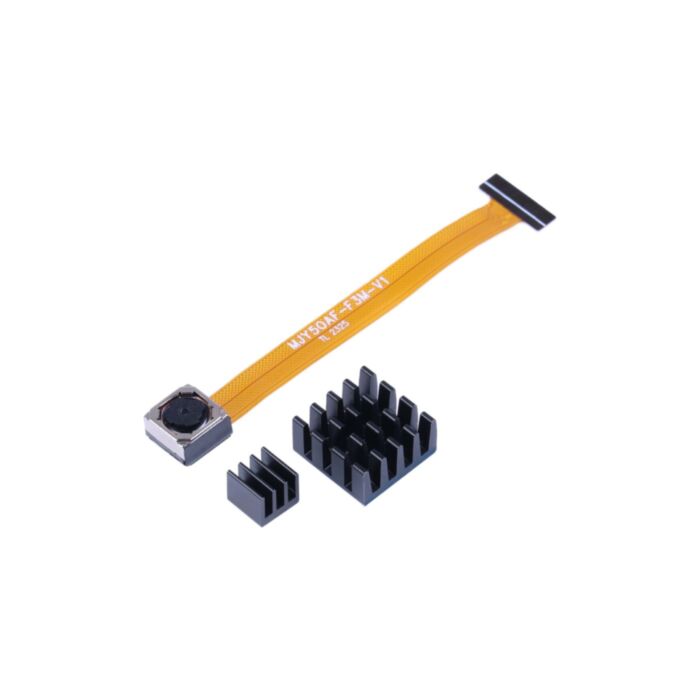

Parts List

  • 1 x OV5640 Camera for XIAO ESP32S3 Sense (With Heat Sink)
  • 1 x 7*6*7 mm heat sink
  • 1 x 14*14*7mm heat sink
