OpAmp Breakout

Rating:

100% of 100

SKU: BOB-09816 Brand: Sparkfun

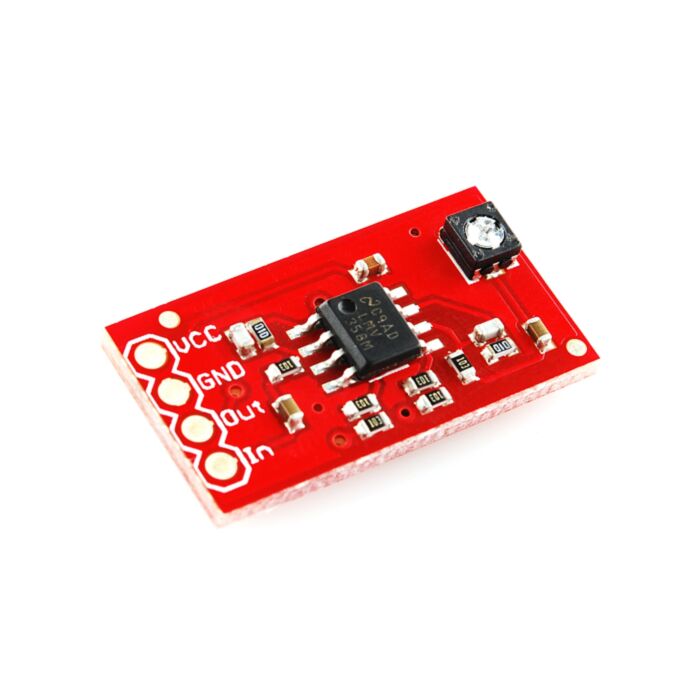

This is a simple Op Amp breakout board, set up as a 2-stage amplifier with a gain of 100 (gain of 10 for each stage). The on-board trim pot sets the signal level between the stages, not the feedback path. The bandwidth is set to 15.9kHz by a pair of feedback capacitors, or over 100kHz with the caps removed. The LMV358 opamp can source up to 160mA and works well as a low impedance driver/buffer.

$9.85 AUD, inc GST

$8.95 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 09 and Dec 12

Quantity Discounts:

10-25 $8.60 (exc GST)
25+ $8.33 (exc GST)

Documents:

Replaces: BOB-08704

This product is listed in:

Breakouts & Modules>OpAmps
