Non-invasive AC Current Sensor (5A max) (Seeed Studio)

SKU: SS101990058 Brand: Seeed Studio

Introduction: What is CT sensors Current transformers (CTs) are sensors that are used for measuring alternating current. They are particularly useful for...

$20.20 AUD, inc GST

$18.36 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 30 and Jan 01

Quantity Discounts:

10-25 $17.63 (exc GST)
25+ $17.08 (exc GST)

Introduction:

What is CT sensors

Current transformers (CTs) are sensors that are used for measuring alternating current. They are particularly useful for measuring whole building electricity consumption (or generation for that matter).

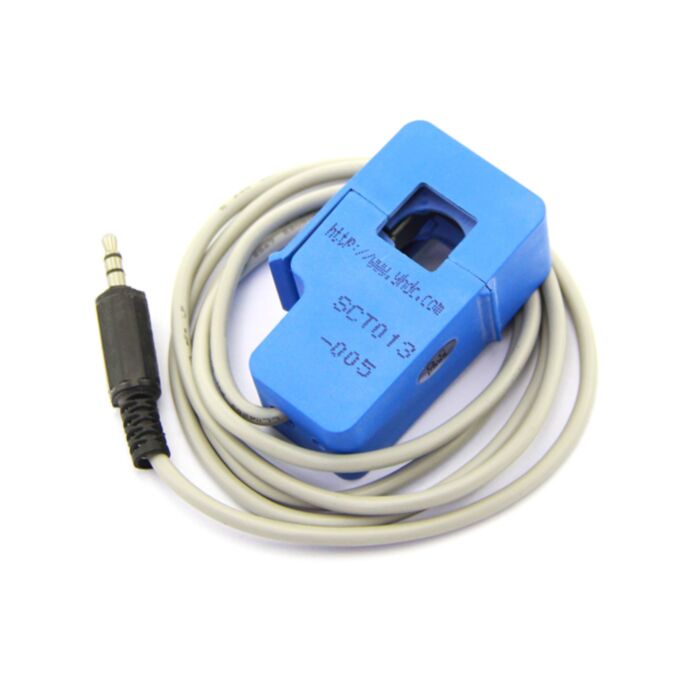

The split core type such as the CT in the picture above, is particularly suitable for DIY use it can be clipped straight on to either the live or neutral wire coming into the building without having to do any high voltage electrical work.

Features:

Applications

Suitable for the current measuring
Monitoring and protection of AC motor
Lighting equipment
Air compressor

Specification:

Input Current: 0~5A AC
Output Mode: 0~1V
Non-linearity: ±3%
Build-in load resistance: 372Ω
Resistance Grade: Grade B
Work Temperature: -25°C ~ 70°C
Dielectric Strength(between shell and output): 1000V AC/1min 5mA
Leading Wire in Length: 1m
Open Size: 13mm x 13mm

Fire resistance property: in accordance with UL94-VO
