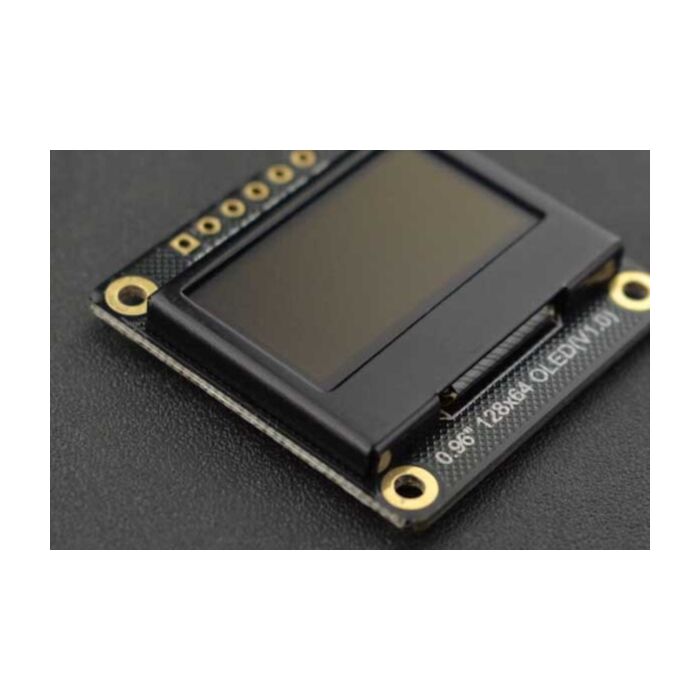

Monochrome 0.96 128x64 I2C/SPI OLED Display

Rating:

100% of 100

SKU: DFR0650 Brand: DFRobot

This 0.96” OLED display module uses the SSD1306 drive chip, has 128x64 self-illuminating white pixels, and adopts two communication methods: SPI/ I2C, I2C in default...

$24.45 AUD, inc GST

$22.23 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 24th of Dec

Quantity Discounts:

10-25 $21.34 (exc GST)
25+ $20.67 (exc GST)

This 0.96” OLED display module uses the SSD1306 drive chip, has 128x64 self-illuminating white pixels, and adopts two communication methods: SPI/ I2C, I2C in default. With its high contrast, simple wiring and low power consumption, it can be applied to many display applications, such as wearable display devices, Mini small game consoles, desktop widgets, etc.

This 0.96” OLED display module supports both 3.3V and 5V. The display module adopts a high-contrast, low-power OLED display. It is compatible with controllers such as Arduino UNO, Leonardo, ESP32/ESP8266, FireBettle-M0 and so on. Internal power-on reset processing, I2C communication methods, so that your welding line will be more convenient and simpler. If you want to change I2C communication to SPI, you just need to change the resistor position. In addition, the display is in an aluminum frame package that protects the screen from damage, and also prevents you from scratching that caused by the glass edge of the screen.

Note: Turn the pixels off when you are not using the display to prevent the use of some pixels too long to darken them, which will cause the brightness uniformity problem.

Monochrome I2C OLED Display Selection Guide
Product Name	0.91" 128x32 OLED-A	0.91" 128x32 OLED-B	0.96" 128x64 OLED
SKU	DFR0647	DFR0648	DFR0650
Chip	SSD1306	SSD1306	SSD1306
Voltage Input	3.3/5V	3.3/5V	3.3/5V
Resolution	128x32	128x32	128x64
Interface	I2C	I2C	I2C/SPI
Welding Method	Chip-mounting pad on the back	Ordinary welding hole	Ordinary welding hole
Size	41x12 mm	33x20 mm	30x30 mm
Price	$9.90	$9.90	$14.50
Features	1. Small size, ultra-narrow design 2. Display 2 rows of 16 pixel characters 3. Chip-mounting pad	1. Small size 2. Display 2 rows of 16 pixel characters	1. Display 4 rows of 16 pixel characters 2. Support I2C/SPI 3. Iron frame to protect the screen
Recommended	Suitable for users with certain hands-on ability to build up applications requiring space and appearance	Suitable for entry-level makers	Applicable for users who want to display much content with high-speed SPI refresh

Features

Self-illuminating OLED display
Controllable pixels and low power consumption
I2C/SPI communication, I2C in default
Supports power-on reset

Applications

Thermometer
Desktop weather display
Kitchen weighing machine
Air quality detector
Mini Game consoles
Wearable display

Specification

Operating voltage: 3.3V to 5V
Color: white pixels
Number of pixels: 128 columns x 64 rows
Interface: I2C (in default) / SPI
I2C address: 0x3C
Drive chip: SSD1306
Brightness: 180 (Typ) cd/m2
Full-screen lighting power: approx. 24mA*3.3V/5V(I2C);

approx. 27mA*3.3V/5V(SPI)

Full-screen off power consumption: approx. 2mA*3.3V/5V(I2C);

approx. 2.87mA*3.3V/5V(SPI)

Operating temperature: -30°C to 70°C
Display area: 21.744 x 10.864(mm) / 0.86”x 0.42”
Size: 30.00x30.00 mm / 1.18”x 1.18”
Weight: 4.2 g

Documents

Product wiki

Parts List

Monochrome 0.96" 128x64 I2C/SPI OLED Display x1
2.54 chip-mounting pin-6P x1
