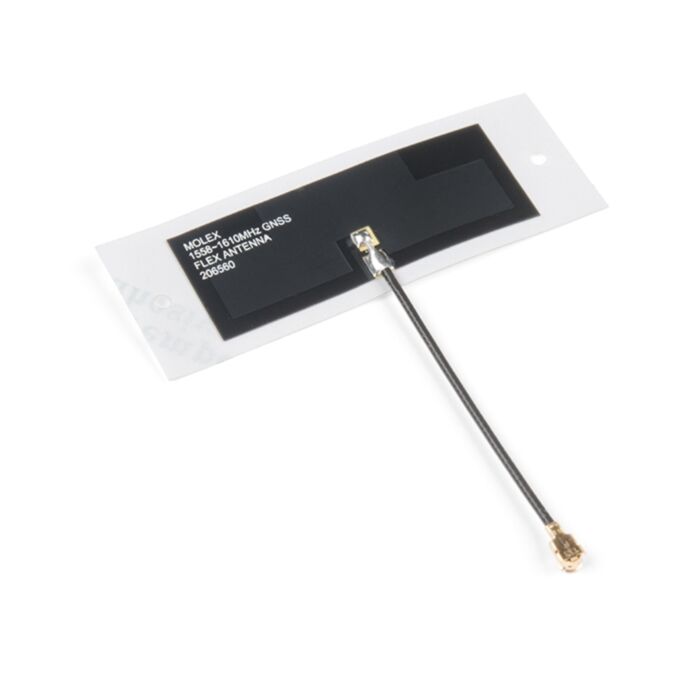

Molex Flexible GNSS Antenna - U.FL (Adhesive)

SKU: GPS-15246 Brand: Sparkfun

A flexible, paper-thin GNSS Antenna with a U.FL connector and an adhesive backing...

$7.70 AUD, inc GST

$7.00 AUD, exc GST

Available with a lead time
Expect dispatch between Nov 28 and Dec 02

Quantity Discounts:

10-25 $6.79 (exc GST)
25+ $6.65 (exc GST)

The Molex GNSS Flex antenna is a great option for basic GNSS applications and will work with any of our GNSS boards equipped with a U.FL at a fraction of the cost of many of its big brothers. This antenna supports GPS, Galileo, BeiDou, and GLONASS in three different frequency bands (1561 /-3MHz, 1575 /-3MHz, 1602 /-3MHz).

The Molex Flexible GNSS Antenna has an incredibly small footprint at 40.40mm x 15.40mm, while the adhesive pad is a bit bigger at 56.40mm x 20mm. Even better, the antenna is only 0.1mm thick (or about the thickness of a piece of paper). Simply remove the backing and stick this to any surface, or leave the backing on (just be careful of the fragile U.FL connector).

Cable length: 50mm
Connector: U.FL
Radiation Pattern: Omnidirectional
Polarization: Linear
Weight: 0.466 g
Mounting Style: Adhesive
Protocol: BeiDou, Galileo, GLONASS, GPS
Return Loss: < -8dB
Peak Gain (Max): 1.1 dBi
Efficiency: >74%
Input Impedance 50 Ohms
