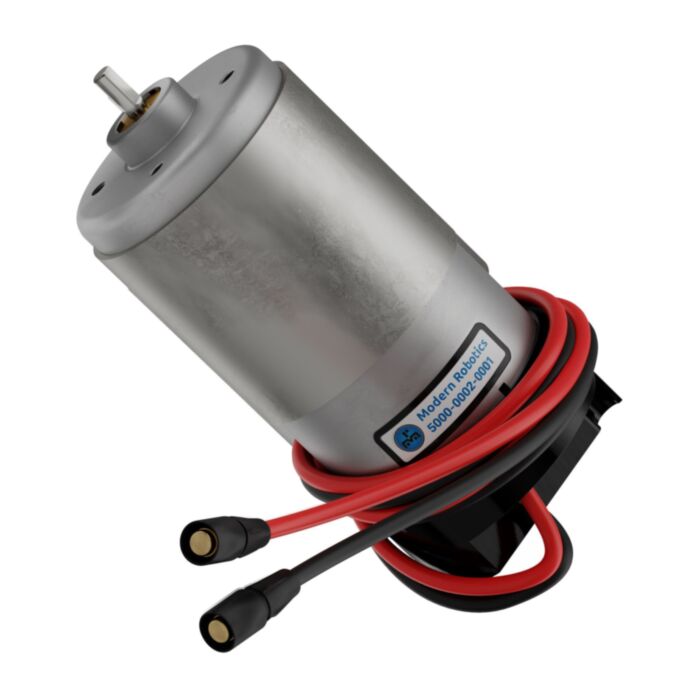

Modern Robotics/MATRIX 12VDC Motor

SKU: GB-5000-0002-0001 Brand: goBilda

This brushed DC motor from Modern Robotics® is legal in FTC (

$35.95 AUD, inc GST

$32.68 AUD, exc GST

Available with a lead time
Expect dispatch between Nov 21 and Nov 25

Quantity Discounts:

10-25 $31.05 (exc GST)
25+ $29.42 (exc GST)

This brushed DC motor from Modern Robotics® is legal in FTC (FIRST Tech Challenge). It is the powerhouse driving the gearboxes of our Yellow Jacket gear motors. Its encoder is designed to work at 3.3V or 5V. Whether you are using an Arduino or the REV Expansion Hub, you don't need to bother with a logic level converter.

Downloads

STEP File

Specs

Weight	247g
Motor Type	Brushed DC
Nominal Voltage	12VDC
No-Load Speed @ 12VDC (Theoretical)	6000 RPM
No-Load Speed @ 12VDC (Tested)	5800 RPM
Stall Current @12VDC	9.2A
Stall Torque @12VDC	1.47 kg.cm (20.45 oz-in)
Motor Connector Type	3.5 FH-MC Bullet Connectors
Encoder Connector Type	4-Pos JST XH [FH-MC]
Encoder Type	Relative, Quadrature
Encoder Sensor Type	Magnetic (Hall Effect)
Encoder Voltage Range	3.3 - 5VDC

This product is listed in:

goBILDA>MOTION>Motors>5000 Series Motors
goBILDA>ELECTRONICS>Motors>5000 Series Motors
