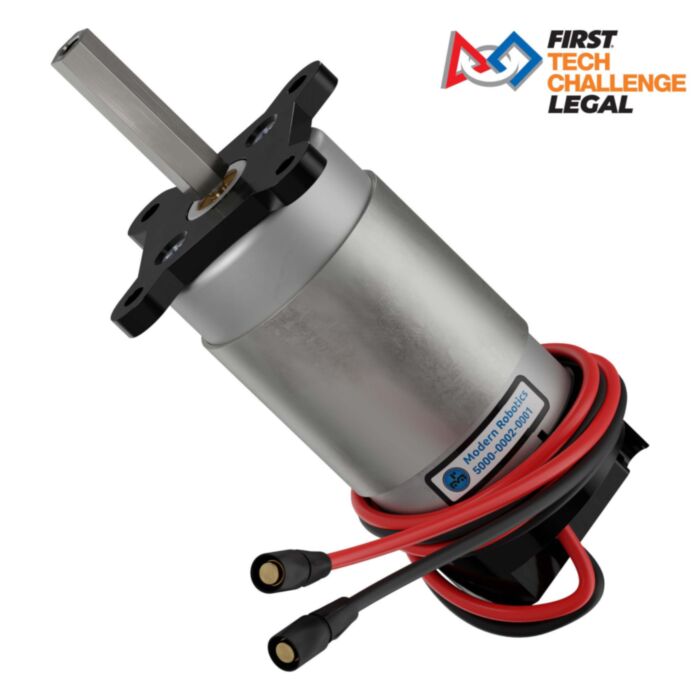

Modern Robotics/MATRIX 12VDC Motor with 8mm REX Pinion Shaft

SKU: GB-5000-0002-4008 Brand: goBilda

This is the motor that drives the popular 5202 Series Yellow Jacket Gear Motors, but with a bit of a twist. Where you would typically...

$45.55 AUD, inc GST

$41.41 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 30 and Dec 31

Quantity Discounts:

10-25 $39.34 (exc GST)
25+ $37.27 (exc GST)

This is the motor that drives the popular Yellow Jacket Planetary Gear Motors, but with a bit of a twist. Where you would typically find a press-fit pinion gear, we’ve installed an 8 REX™ pinion shaft. What’s a pinion shaft? - well, we didn’t want to cause confusion between the factory motor shaft, which measures 0.125”, and the shaft that fits onto it, hence the unique name. The 8mm REX™ output shaft protrudes 36mm from the mounting face of the motor so you have plenty of real estate to attach a gear, pulley or hub to, while still leaving room for an 8mm REX™ bearing to add that bit of necessary support. The motor has a tested speed of 5800RPM so put on your safety glasses and let it rip!

Downloads

STEP File

Specs

Weight	254g
Motor Type	Brushed DC
Nominal Voltage	12VDC
No-Load Speed @ 12VDC (Theoretical)	6000 RPM
No-Load Speed @ 12VDC (Tested)	5800 RPM
No-Load Current @12VDC	0.25A
Stall Current @12VDC	9.2A
Stall Torque @12VDC	1.47 kg.cm (20.45 oz-in)
Wire Length	470mm (including connectors)
Motor Connector Type	3.5mm FH-MC Bullet Connectors
Encoder Connector Type	4-Pos JST XH [FH-MC]
Encoder Type	Relative, Quadrature
Encoder Sensor Type	Magnetic (Hall Effect)
Encoder Voltage Range	3.3 - 5VDC
Encoder Cycles Per Revolution (Encoder Shaft)	7 (Rises of Ch A)
Encoder Cycles Per Revolution (Output Shaft)	7 (Rises of Ch A)
Encoder Countable Events Per Revolution (Encoder Shaft)	28 (Rises & Falls of Ch A & B)
Encoder Countable Events Per Revolution (Output Shaft)	28 (Rises & Falls of Ch A & B)
