Mini Power Meter with Voltage, Current, Watts, mAh & mWh Display

SKU: ADA3624 Brand: Adafruit
This Mini Power Meter with Voltage, Current, Watts, mAh & mWh Display (whew that is a mouth-full) is a lot like the USB In-Line Voltage and Current Meter We carry...
$55.30 AUD, inc GST
$50.27 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Thu, 18th of Jul

Quantity Discounts:

  • 6-12 $48.26 (exc GST)
  • 12+ $46.75 (exc GST)
- +

3 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This Mini Power Meter with Voltage, Current, Watts, mAh & mWh Display (whew that is a mouth-full) is a lot like the USB In-Line Voltage and Current Meter we carry but can be used with a wide range of voltages (not just USB connections). Measure the working voltage and current output for any project with this really fancy power meter.

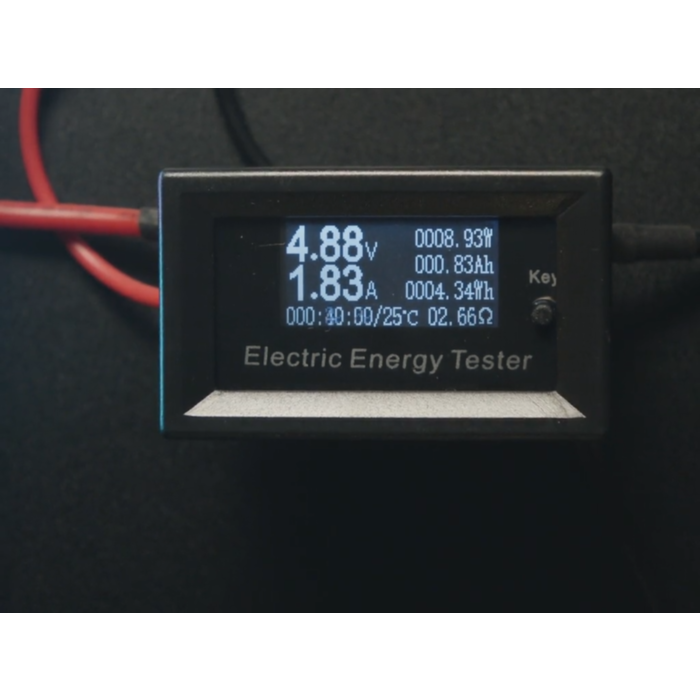

This power meter has a small LCD display that shows off voltage, watts, amps, and mAH and instantly reads the numbers out for testing devices, such as chargers, cables, and cell phones. There are a few nice extras in this very fancy monitor, such as showing the ambient temperature and calculating the cumulative Watt-hours and milliAmp-hours over a running time. Basically it's an all-in-one power management solution that doesn't require any calculation or data logging on your part.

You can have it self-power from the power source it's measuring (it has a quiescent of about 20mA and requires at least 3V), or you can power separately from a JST connector or power-only micro USB socket.



Comes with

  • 1 x 2-pin JST Connector
  • 1 x NTC Temperature Sensor



Technical Details

Revision History:

  • As of June 23, 2020, this power mini kit no longer comes with positive and negative alligator clips, but now includes an NTC temperature sensor.

Specifications:

  • Input/output interface: 20 A large current screw terminal
  • Voltage range: 0.00 V ~ 150 V ± 0.05V
  • Current range: 0.00A ~ 20.0 A ± 0.05A
  • Capacity range: 0 ~ 999.999 Ah ± 0.01 Ah
  • Power cumulative range: 0 ~ 99999.9 Wh ± 0.01 Wh
  • Power range: 000.00 ~ 2999.99 W ± 0.01 W
  • Impedance range: 1 ~ 999.9 ohm ± 0.1 ohm
  • Temperature range: 0 ~ 99 C  ± 1 degree C
  • Timing maximum time: 999 H 59 M 59 S ± 1S
  • Small current standby alert threshold parameters: < 2W / 0.5 H
  • Small voltage power supply requirements: measuring: < 5V
  • When voltage within range of 4 ~ 30V DC sensor is selfpowering
  • For low voltage measurements, please supply independent power supply interface
  • Measurement rate: 0.5 times per second
  • Over-voltage over-current set the alarm mode: display warning interface to alert users
  • Over-voltage alert set range: 1 ~ 300V
    Under-voltage alert set range: 0 ~ 149V
  • Current alert set range: 0.2 ~ 100A
  • Product size: 48mm x 29mm x 22 mm
  • Quiescent current: < 20 mA
  • Working temperature: -10 ~ + 60 degrees Celsius
  • Working humidity: 10 ~ 80 % RH
  • Working pressure: 80 ~ 106 kPa

Product Dimensions: 47.5mm x 28.5mm x 26.8mm

Product Weight: 18.5g
