    2A Dual Motor Controller

    SKU: DRI0002

    $27.27 AUD, inc GST

    More Views

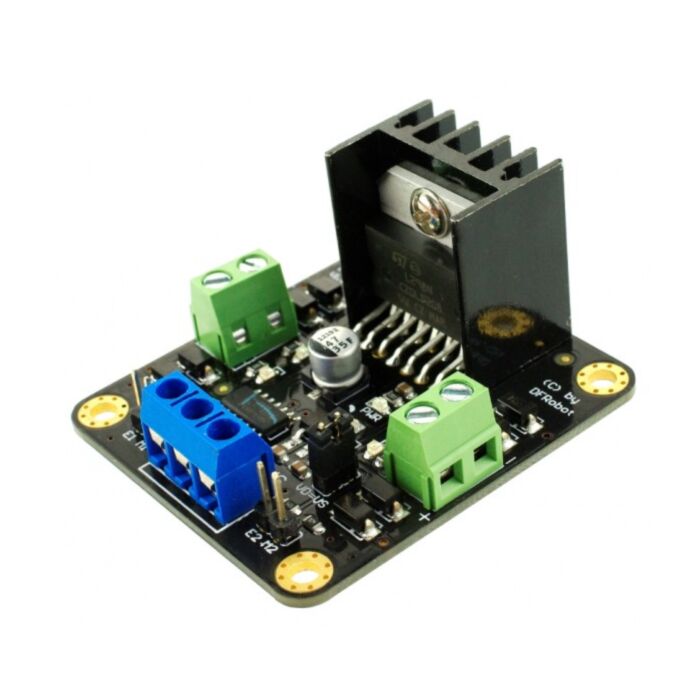

    2A Dual Motor Controller
    27.27 AUD

    SKU: DRI0002

    $27.27 AUD, inc GST
    Ships today (delivered by Wed, 22nd of Feb)

    Introduction

    This is a4.8-46V, 2A Dual Motor Controller which is the revised version of the DF-MDV1.0. Its performance has been improved greatly. It can bear larger current due to the increased haetsink dissipation. It is easy to control, using LGS's outstanding high-power motor driver chip, the L298N. This chip allows for direct drive of two bi-directional DC motors, and incorporates high-speed short diodes for protection. Drive current up to 2A per motor output. The driver uses a broad-brush design to reduce wire resistance.

    Specification

    • The logic part of the input voltage: 6 ~ 12V
    • Driven part of the input voltage Vs: 4.8 ~ 46V
    • The logical part of the work current Iss: 36mA
    • Drive part of the operating current Io: 2A
    • Maximum power dissipation: 25W (T = 75 degree Celsius)
    • Control signal input level:
    • High level: 2.3V = Vin = Vss
    • Low:-0.3V = Vin = 1.5V
    • Operating temperature: -25 degree Celsius ~ +130 degree Celsius
    • Drive Type: Dual high-power H-bridge driver
    • Module Size: 47 mm × 53mm
    • Module Weight: About 29g

    Documents

    This product is listed in:

    Documentation and Resources:
    • Cosplay Blaster
    • Hey guys! First time poster. I've been working on a blaster for my girlfriend's costume, and I thought I would share it with everyone. When triggered, it plays a selected sound effect and flashes the light. Pretty simple :)
    • Coffee Grinder With Arduino
    • Using a few bits and pieces, this ordinary coffee grinder now has two presets to run the motor for a programmable length of time. The idea being that the grinder running for a set amount of time will deliver a certain amount of coffee each button press meaning the beans can be stored unground, keeping them fresher for longer. I completed this project for a friend, Ian, who lives for coffee. Ian wanted the same functionality in h...
    • The Hipster Coaster
    • We wanted to make a interactive display of the fun that can be had with DIY projects to take to Sydney Mini Maker Faire. We decided to do so by utilising the TinkerKit Braccio from Arduino.org, alongside some 3D Printing ingenuity, for an engaging display for all ages. Enter the Hipster Coaster in all its glory.   All the parts were printed seperately on our family of Lulzbot 3D Printers, later stuck together using a mi...
