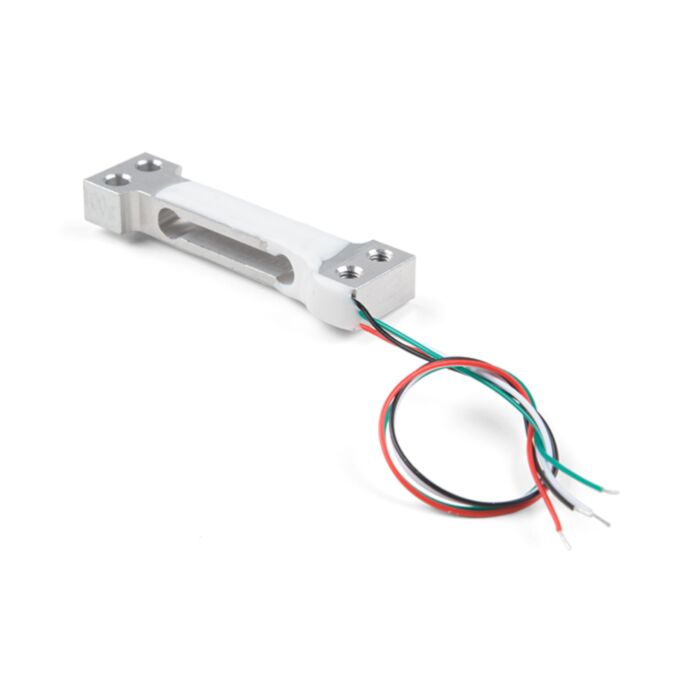

Mini Load Cell - 100g, Straight Bar (TAL221)

SKU: SEN-14727

$18.14 AUD, inc GST
$16.49 AUD, exc GST

More Views

Mini Load Cell - 100g, Straight Bar (TAL221)
18.14 AUD

SKU: SEN-14727

$18.14 AUD, inc GST
$16.49 AUD, exc GST

Shipping:

  • $6.95 Standard (2-4 days, tracked)
  • $8.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This miniature straight bar load cell (sometimes called a strain gauge) can translate up to 100g of pressure (force) into an electrical signal. Each load cell is able to measure the electrical resistance that changes in response to, and proportional of, the strain (e.g. pressure or force) applied to the bar. With this gauge, you will be able to tell just how heavy an object is, if an object’s weight changes over time, or if you simply need to sense the presence of an object by measuring strain or load applied to a surface.

Each straight bar load cell is made from an aluminum alloy and is capable of reading a capacity of 100g. These load cells have four strain gauges that are hooked up in a wheatstone bridge formation. The color code on the wiring is as follows: red = Exc+, green = Sig+, black = Exc-, and white = Sig-. Additionally, these load cells offer an IP65 protection rating and features four M3 sized through-holes for mounting purposes.

Features

  • Capacity: 100g
  • Material: Aluminum-Alloy
  • Parallel Beam Type
  • IP65 Rating
  • Dimensions: 47mm x 12mm x 6mm, 110mm Wire
