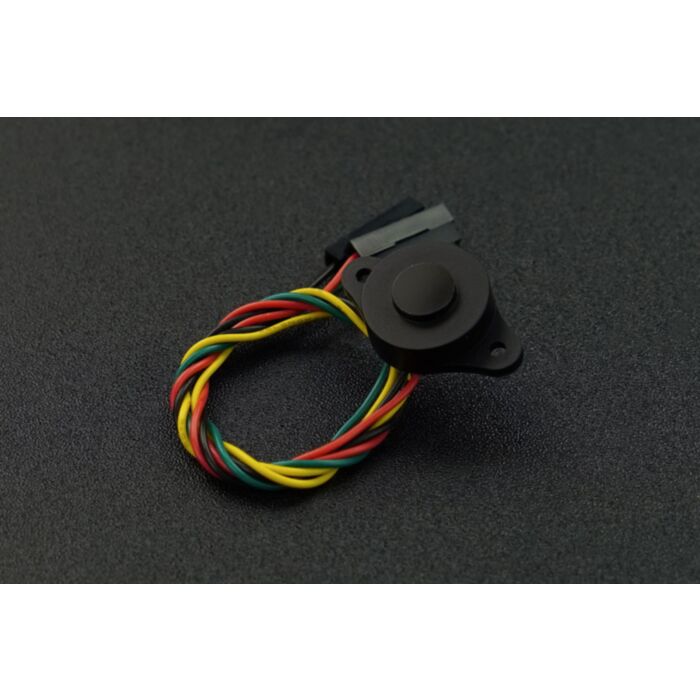

Mini Laser Distance Range Sensor (4m, I2C, IP67)

SKU: SEN0590 Brand: DFRobot

This Arduino mini LiDAR laser distance sensor offers precise measurements, simple integration with Arduino via I2C, and a wide range of applications,...

Special Price $21.10 AUD, inc GST

Regular Price $24.76 AUD, inc GST

$19.18 AUD, exc GST

Special pricing ends 05 August 2024

* this special may end earlier than shown

Available with a lead time
Expect dispatch between May 17 and May 20

This laser distance ranging sensor has a compact size, comparable to the size of a fingernail, and a measurement range of up to 4m. It is specifically designed to address the issues commonly found in distance sensors on the market, such as large size, slow response time, and poor installation adaptability.

It boasts a range of advantages including small size, minimal blind zone (Measurement accuracy: =25cm@±1cm, >25cm@±S*4%cm), fast response time (19-38ms), high installation adaptability, dust and water resistance (IP67), long lifespan, and high reliability.

The sensor outputs data through an I2C interface, which allows users to easily integrate it with Arduino IO expansion boards.

It finds widespread applications in various fields, including smart furniture with motion sensing capabilities, home security systems, intelligent detection systems, smart control systems, robot obstacle avoidance, and object proximity and presence detection.

Wiring Diagram of Laser Ranging Sensor and IO Expansion Shield

Figure: Wiring Diagram of Laser Ranging Sensor and Arduino IO Expansion Shield

Features

Compact size and small blind zone

Lightweight and fast response time

Simple to use with I2C output

IP67 waterproof rating

Applications

Smart furniture with motion sensing capabilities

Home security systems

Intelligent detection systems

Smart control systems

Robot obstacle avoidance

Object proximity and presence detection

Specification

Measurement range: 2-400cm.

Measurement accuracy: =25cm@±1cm, >25cm@±S*4%cm (with an actual error of around 5mm).

Operating voltage: 3.3-5V.

Idle current: 2mA.

Operating current: <19mA.

Communication method: I2C.

Output response time: 19-38ms.

Power-on delay time: =800ms.

Detection angle: 19°.

Operating temperature: -15°C ~ 60°C.

Operating humidity: 65% ~ 80%RH.

Storage temperature: -30°C ~ 80°C.

Storage humidity: 65% ~ 90%RH.

Documents

Product wiki

Parts List

Laser Ranging Sensor (4m) x1
