Mini Illuminated Momentary Pushbutton - Blue Power Symbol

Rating:
100% of 100
SKU: ADA3105 Brand: Adafruit
This Mini Illuminated Momentary Power Button is an adorable breadboard-friendly tactile switch that has a built-in LED. It provides a simple way to add a tactile...
$3.95 AUD, inc GST
$3.59 AUD, exc GST

Available with a lead time
Expect dispatch between Apr 08 and Apr 09

Quantity Discounts:

  • 10-25 $3.45 (exc GST)
  • 25+ $3.34 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

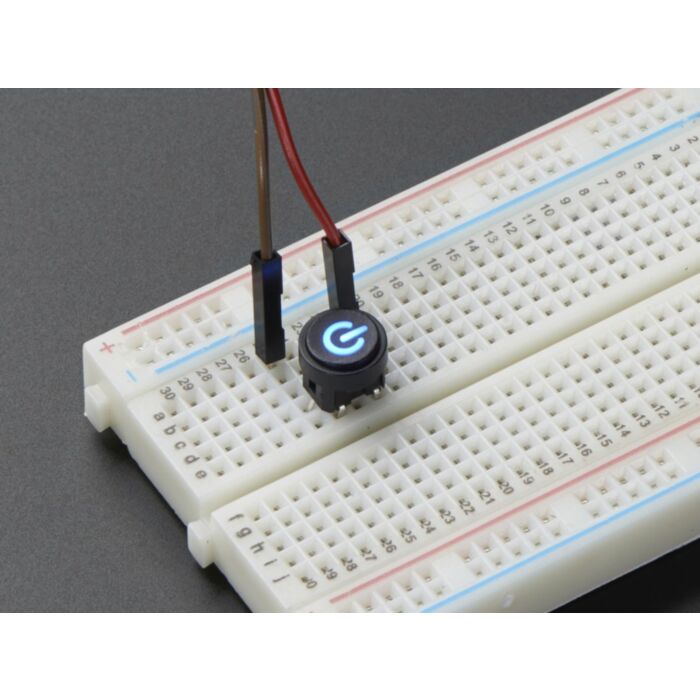

This Mini Illuminated Momentary Power Button is an adorable breadboard-friendly tactile switch that has a built-in LED. It provides a simple way to add a tactile switch and a colorful universal power symbol to your project.

The tact switch is about the same size as 6mm tactile switches and can snap into a breadboard. There are an additional two pins that connect to the anode and cathode of a small LED that shines through the top.

Note that this is a momentary button, not a on-off switch! Also, the LED is not connected to the switch in any way, and does not include a resistor. You'll need to add your own ~1K resistor and control the LED with a microcontroller pin or whatever you like.

This is the Blue version of this button - They also sell it in Red!

Technical Details

  • Product Diameter: 9.8mm / 0.4"
  • Product Height: 8mm / 0.3"
  • Voltage rating for tactile switch: 12V
  • Current rating for tactile switch: 50mA
  • Current rating for LED: ~10mA
  • Product Weight: 0.4g/0.0oz
