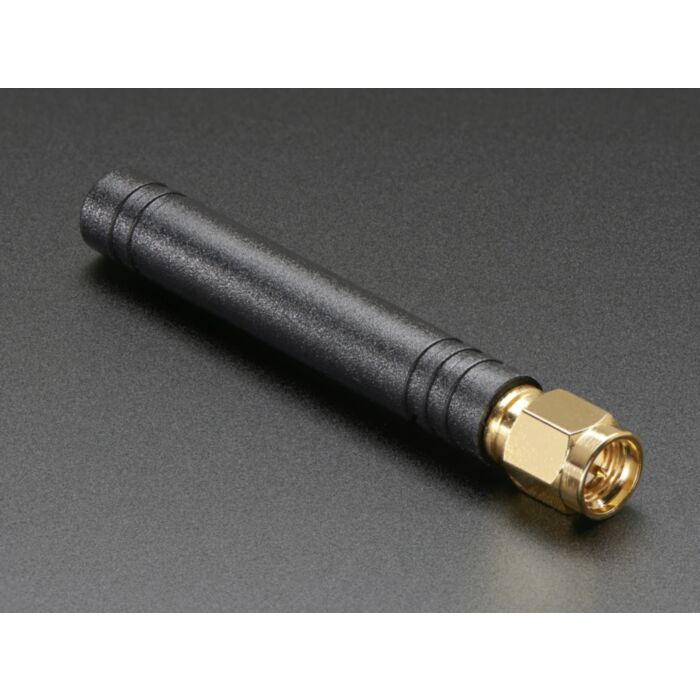

Mini GSM/Cellular Quad-Band Antenna - 2dBi SMA Plug

Rating:
100% of 100
SKU: ADA1859 Brand: Adafruit
This 2.4"/61mm long antenna has 2dBi of gain and 50O impedance so it will work fantastically with just about any 850/900/1800/1900/2100 wireless receiver/transmitter...
Special Price $10.16 AUD, inc GST
Regular Price $11.95 AUD, inc GST
$9.24 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
The shipping address needs to be in the AusPost next day network and eParcel Express is chosen during checkout. On rare occasions, orders may be delayed by up to one business day due to AusPost pickup timings or for order verifications.

- +

1 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Favourite product

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This 2.4"/61mm long antenna has 2dBi of gain and 50O impedance so it will work fantastically with just about any 850/900/1800/1900/2100 wireless receiver/transmitter such as any Cellular or GSM/GPRS device.

Antenna comes with a SMA connector, which is the most common type you'll see for Cellular development boards. If you need to connect this to an RP-SMA connector for some reason, use this handy adapter and if you need to connect to a u.FL connector, just pop on this adapter.

Technical Details

Specifications:

  • Datasheet
  • Frequency: 850/900/1800/1900/2100 MHz
  • Gain: 2 dBi
  • V.S.W.R.: <=2:1
  • Polarization: Vertical
  • Connector: SMA Male (Option)
  • Impedance: 50O
  • Operation Temperature: -20ºC ~ 60ºC
  • Storage Temperature: -30ºC ~ 75ºC

Dimensions:

This product is listed in:

Wireless>Cellular>Antennas
