Micro Servo - MG90D High Torque Metal Gear

Rating:
100% of 100
SKU: ADA1143 Brand: Adafruit

Add more power to your robot with this metal-geared MG90D servo (the upgrade to the MG90S). The tiny little servo can rotate approximately 90 degrees (45 in each direction)

$21.90 AUD, inc GST
$19.91 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Fri, 19th of Apr

Quantity Discounts:

  • 10-25 $19.11 (exc GST)
  • 25+ $18.52 (exc GST)
- +

3 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

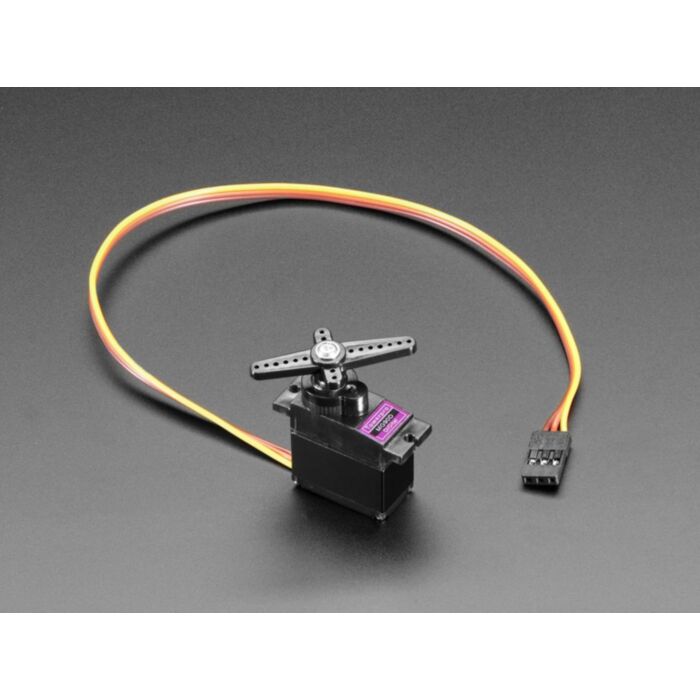

Add more power to your robot with this metal-geared MG90D servo. The tiny little servo can rotate approximately 90 degrees (45 in each direction), and works just like the standard kinds you're used to but smaller. You can use any servo code, hardware or library to control these servos. Good for beginners who want to make stuff move without building a motor controller with feedback & gear box, especially since it will fit in small places. Of course, its not nearly as strong as a standard servo. Works great with the Motor Shield for Arduino, Adafruit's 16-channel Servo Driver, or by just wiring up with the Servo library. Comes with a few horns and hardware.

Please note, this servo will 'hold' the position even when no signal is sent!

To control with an Arduino, we suggest connecting the orange control wire to pin 9 or 10 and using the Servo library included with the Arduino IDE (see here for an example sketch). Position "0" (1.5ms pulse) is middle, "90" (~2ms pulse) is all the way to the right, "-90" (~1ms pulse) is all the way to the left.

Details:

  • Size : 22.8 x 12.2 x 28.5 mm
  • Voltage : 4.8V to 6V DC
  • Weight: 13.4 grams
  • Speed : 0.1 sec/60degrees (at 4.8V), 0.08 sec/60 degrees (at 6.0V)
  • Stall Torque : At 4.8V: 2.1 kg-cm / 25 oz-in. At 6.0V: 2.4 kg-cm / 30.5 oz-in
  • Spline Count: 20

Revision History:

  • As of November 7, 2018 this item has been updated to have a new digital 13g metal gear, with a double ball bearing servo.
