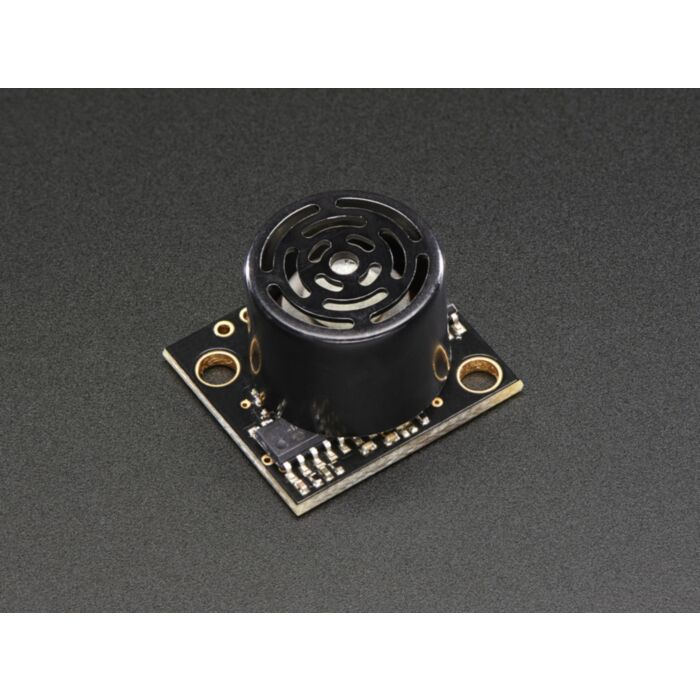

Maxbotix Ultrasonic Rangefinder - HRLV-EZ0 - HRLV-EZ0

SKU: ADA983 Brand: Adafruit

The HRLV-MaxSonar-EZ sensor line is the most cost-effective solution for applications where precision range-finding, low-voltage operation, space saving, and low-cost...

$79.20 AUD, inc GST

$72.00 AUD, exc GST

Available with a lead time
Expect dispatch between Nov 25 and Nov 28

Quantity Discounts:

6-12 $69.12 (exc GST)
12+ $66.96 (exc GST)

The HRLV-MaxSonar-EZ sensor line is the most cost-effective solution for applications where precision range-finding, low-voltage operation, space saving, and low-cost are needed.

The HRLV-MaxSonar-EZ sensor line provides high accuracy and high resolution ultrasonic proximity detection and ranging in air, in a package less than one cubic inch. This sensor line features 1mm resolution, target-size and operating-voltage compensation for improved accuracy, superior rejection of outside noise sources, internal speed-of-sound temperature compensation and optional external speed-of-sound temperature compensation. This ultrasonic sensor detects objects from 1mm to 5meters, senses range to objects from 30cm to 5meters, with large objects closer than 30cm typically reported as 30cm. The interface output formats are pulse width, analog voltage, and serial digital in either RS232 or TTL. Factory calibration is standard.

A good sensor for when a Sharp IR distance sensor won't cut it. For example of using this with an Arduino, see the Halloween Pumpkin project.

HRLV-EZ0 Data Sheet / Product Information Guide is available here. By default this sensor outputs RS-232 logic level data, to use it in TTL logic mode, solder closed the square jumper on the back.

The different HRLV models have different beam width patterns, check this image for a comparison of all the HRLV model beam patterns. If you don't need high sensitivity, or want a longer range, check out the LV models - They are meant for up to 6.5 meter distances

Technical Details

Dimensions:

Length: 15.52mm/0.61in
Width: 22.36mm/0.88in
Height: 20.0mm/0.79in
Weight: 4.23g/0.15oz

For product support for all Maxbotix products, click here!
