Makerverse Electronic Keyboard for Raspberry Pi Pico
A DIY soldering kit to create an 8-button keyboard
In stock, ships same business day if ordered before 2PM
Delivered by Fri, 3rd of May
Quantity Discounts:
- 4-12 $4.79 (exc GST)
- 12+ $4.52 (exc GST)
- 50+ $3.45 (exc GST)

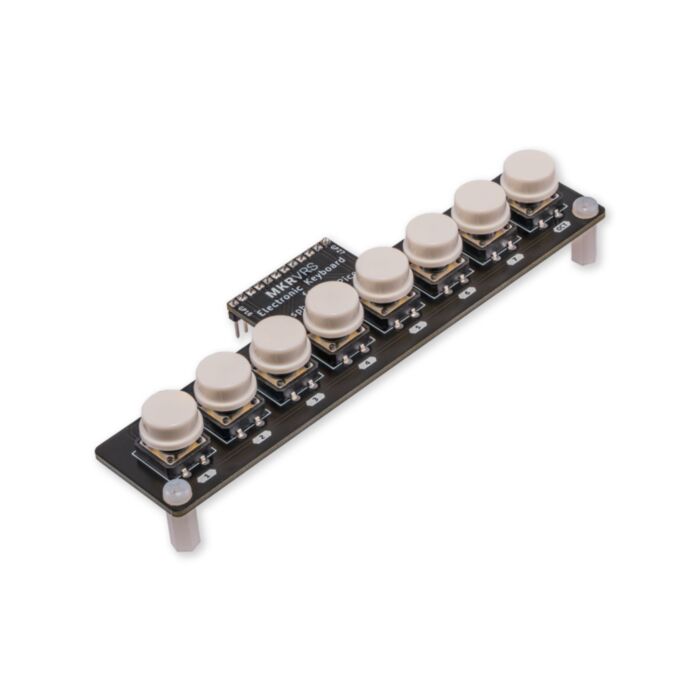

The Makerverse Electronic Keyboard for Raspberry Pi Pico is a DIY soldering kit featuring an array of eight buttons. Each button connects to a different digital input pin on the Raspberry Pi Pico. The buttons are labelled 1 to 7, then "oct" (octave) as its primary purpose is to cover one octave of a musical keyboard. This product features in the Makerverse Audio Kit. Check out the kit-guide if you want to see it in action!
To make electrical connections easy the 12-pin header connects directly to the Raspberry Pi Pico, covering pins GP16 (pin 21) to GP27 (pin 32). The RUN pin (pin 30) is not connected, so a reset button can still be used.
Features
- 8 buttons, each with a dedicated pin
- DIY soldering kit
- Button caps, pins and standoffs provided
- A great guide to get you started
- Manufactured and supported in Australia by Core Electronics
Pinout
| Button | Pico Pin |
| 1 | GP16 |
| 2 | GP17 |
| 3 | GP18 |
| 4 | GP19 |
| 5 | GP20 |
| 6 | GP21 |
| 7 | GP22 |
| OCT | GP26 |
Resources
Makerverse Overview
Makerverse hardware is designed for makers, by makers. We're making the tools and modules we think are the most useful to electronics enthusiasts and people that just want to get their projects done. As experienced makers ourselves, we're building in the features and design considerations that we find most valuable and have wished for in other modules.
All Makerverse devices are
products designed by our team in Newcastle Australia. We manufacture the modules here as well.
"Makerverse" and the Makerverse Logo are trademarks of Core Electronics Pty Ltd.
