M5StickC Yun Hat (SHT20, BMP280, SK6812)

SKU: CE07671 Brand: M5Stack

HEART is built using the MAX30100 chipset. MAX30100 is a complete pulse oximetry and heart-rate sensor system solution designed for the demanding requirements of wearable devices. The MAX30100 provides very small total solution size without sacrificing optical or electrical performance. Minimal external hardware components are needed for integration into a wearable device.

Special Price $25.46 AUD, inc GST

Regular Price $29.95 AUD, inc GST

$23.15 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 19th of Nov

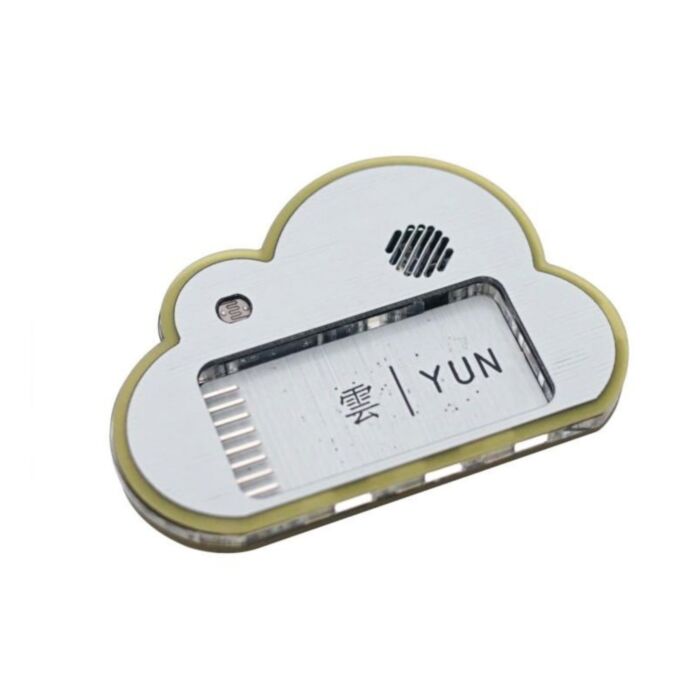

YUN HAT is a cloud-shaped multi-function environment information measurement base. Built-in temperature and humidity sensor SHT20, air pressure sensor BMP280, photoresistor,14 RGB LEDs. The board is built with Embedded Microprocessor * STM32F030F4** , which implemented concise and efficient program APIs.

YUN HAT features a pretty appearance that could be used as a decoration for your space.

The base is designed for the M5StickC, like other HAT devices, it is compatible with top socket of M5StickC. The overall structure adopts a three-layer design, and the upper and lower PCB boards serve as fixed structure and main circuit respectively, which is beneficial to the circuit conduct long hours of work.
the board also provides an independent external power interface.

The middle layer is a light-guided acrylic component. To achieve a better light display effect, The acrylic outer contour cutting surface is partially polished, and the purpose is to effectively reduce the scattering of light, making it evenly saturated with light effects.

One hook hole and two 64mm magnet mounting positions are reserved on the board, so users can easily magnet or hang in any corner of space.

Features

Compatible with M5StickC
On-board Microprocessor STM32F030F4
Temperature and Humidity sensor SHT20
Air pressure sensor BMP280
Photoresistance
14 x SK6812 4020 RGB LED
Three-layer structure design:
1 x hook hole
2 x 6*4mm magnet mounting position
1 x finishing Acrylic profile surface
Development platform: Arduino, UIFlow(Blockly, Python)

Include

1x YUN HAT
2x Dupont

Applications

Environmental information collection
Smart home decoration
Fridge Magnet

Specification

Net weight: 7g
Gross weight: 15g
Product Size: 75*55*5mm
Package Size: 100*85*20mm
