Features

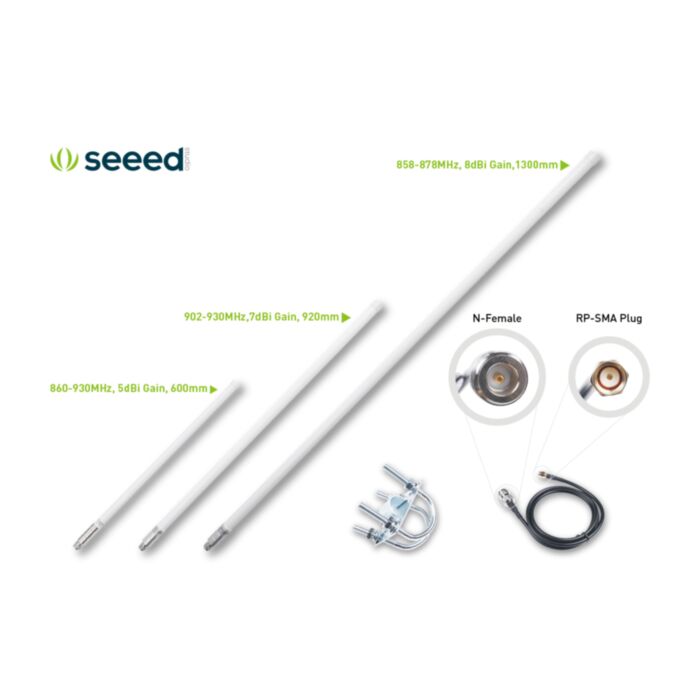

For some applications like in an urban environment or where large stretches of land have to be monitored the normal range of LoRa might not be enough. If you need to increase the range for your LoRa devices, then this outdoor LoRa Fiberglass antenna will be the ideal addition to your LoRa system. It’s a robust solution to provide extra power and range for outdoor LoRa Base stations. The antenna has an average gain of 6dBi, a length of 60cmand a frequency range from 860-930MHz and it comes with hardware for pole and wall mounting.
The Antenna has an N-J Double tooth connector, and it comes with an N-Female to RP-SMA plug cable so it can be easily connected to the SenseCAP Gateways.
Application
The antenna can be used in any environment where long-range LoRa connections are required.
Parameters
Frequency | 860-930MHz |
Antenna Gain | 6.0 +/-0.8dBi |
Efficiency | >=60% |
Radiation Pattern | Omni-Directional |
Max Input Power | >=2W |
Polarization | Linear polarization/ Vertical |
Impedance | 50 Ohm |
Material of Radiator | CU |
Material of Plastic | FRP (white light) |
Cable Type | RG-141 50Ohm |
Connector Type | N-J Double tooth connector |
Operation Temperature | -30°C ~65°C |
Storage Temperature | -30°C~65°C |
Antenna Color Storage life | < 2 year |
Cable length | 1m |
ECCN/HTS
HSCODE | 8517707090 |
