Kitronik 5-Second Drag Race Timer Kit

SKU: KT-25120 Brand: Kitronik

Build and race with the Kitronik 5-Second Drag Race Timer Kit, an educational electronics project that combines hands-on circuit assembly with exciting drag racing challenges perfect for classroom STEM activities.

$11.05 AUD, inc GST

$10.05 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 31 and Jan 02

Quantity Discounts:

10-25 $9.75 (exc GST)
25+ $9.55 (exc GST)

The Kitronik 5-Second Drag Race Timer Kit transforms electronics learning into an exciting racing challenge. This innovative kit combines hands-on circuit assembly with competitive racing activities, making it an ideal platform for teaching practical electronics and design principles while fostering engagement through friendly competition.

Key Features

Pre-built motor driver and timer module for reliable operation
Low-torque flat DC motor with panel-mounting capability
Integrated 5-second timer with push-button activation
Operating voltage: 2.5V to 3.0V
Current draw: 220mA during motor operation
Battery life: Approximately 2000 button presses with 2 x AA batteries
4 x M3 mounting holes for secure chassis attachment
Button expansion pads for remote trigger installation
Built-in noise suppression via 10nF capacitor

How to Use

Assembly of the Kitronik 5-Second Drag Race Timer Kit involves three main steps:

Solder the battery holder and motor to their corresponding pads on the PCB
Install the 10nF capacitor across the motor terminals for noise suppression
Design and construct a chassis to house the components

Once assembled, pressing the button activates the motor for exactly 5 seconds, creating consistent racing conditions for comparative testing and competition.

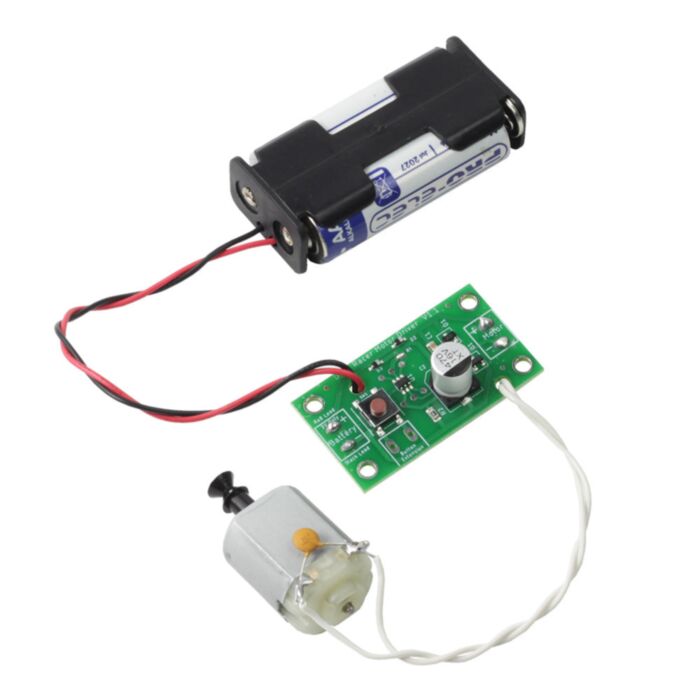

What's in the Box

1 x Pre-built Kitronik Timed Drag Racer Board
1 x Low torque flat DC motor
1 x AA battery holder
1 x Ceramic Capacitor (10nF)
1 x Motor Pulley

Compatibility

This kit works seamlessly with standard AA batteries and can be integrated with various chassis designs. For expanded functionality, it's compatible with the Kitronik Klip Motor Driver for BBC micro:bit and other Kitronik educational electronics products.

Additional Resources

For educators, Kitronik offers a sample kit program available through their educational support service. Schools can request one sample kit per institution for evaluation purposes using stock code 25120.

About Kitronik

Kitronik is a British manufacturer specialising in educational electronics and project kits. Their products are designed and manufactured in the UK, focusing on quality and educational value. With a strong emphasis on STEM education, Kitronik develops products that make electronics accessible and engaging for students and educators alike.

This product is listed in:

Kits>Maker Kits
School Education>STEM & STEAM Kits
Kits>Fundamental Learning
