IR distance sensor includes cable (10cm-80cm) - GP2Y0A21YK0F

SKU: ADA164

$25.00 AUD, inc GST
$22.73 AUD, exc GST

More Views

IR distance sensor includes cable (10cm-80cm) - GP2Y0A21YK0F
25 AUD

SKU: ADA164

$25.00 AUD, inc GST
$22.73 AUD, exc GST
Shipping Offer

Shipping:

  • $6.95 Standard (2-4 days, tracked)
  • $8.95 Express (Overnight*, tracked)
  • $3 Economy Post* (3-7 days, no tracking)
  • FREE Pickup (Newcastle only)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

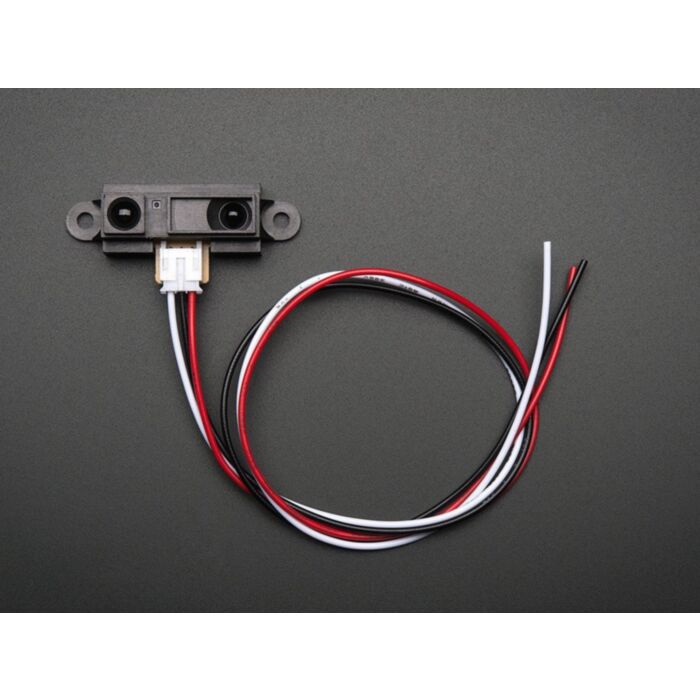

This SHARP distance sensor bounces IR off objects to determine how far away they are. It returns an analog voltage that can be used to determine how close the nearest object is. Comes with 12" long 3-JST interface wire. These sensors are good for short-range detection. For over 1 m distance, we suggest using sonar sensors

To use, connect black wire to ground, red wire to 5V and white wire to analog input. The analog voltage out will range from 3V when an object is only 4" (10 cm) away and 0.4V when the object is 32" (80 cm) away

For more information, please see the datasheet!

Technical Details

Dimensions:

  • Length: 13.53mm/0.53in
  • Width: 44.39mm/1.75in
  • Height: 18.67mm/0.75in
  • Weight: 3.5g/0.12oz

Screw holes are 37mm apart, 3.2.mm diameter.

NETduino driver code

Documentation and Resources:
