IP68 Underwater Ultrasonic Obstacle Avoidance Sensor (6m, UART)

Skip to the beginning of the images gallery

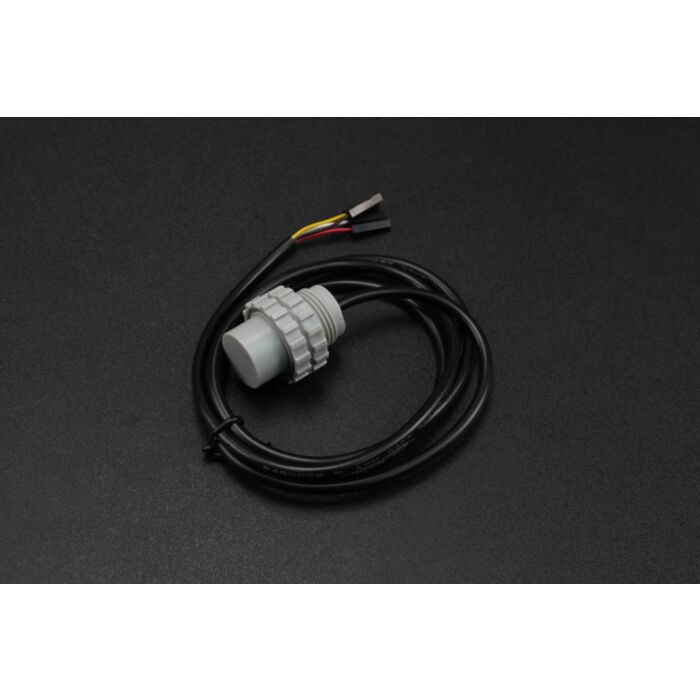

IP68 Underwater Ultrasonic Obstacle Avoidance Sensor (6m, UART)

SKU: SEN0599 Brand: DFRobot

The IP68 underwater ultrasonic obstacle avoidance sensor's underwater measurement range is from 5cm to 600cm, specifically designed for underwater...

$61.60 AUD, inc GST

$56.00 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 02 and Dec 04

Quantity Discounts:

6-12 $54.32 (exc GST)
12+ $53.20 (exc GST)

This is an underwater ultrasonic obstacle avoidance sensor specifically designed for underwater applications. It operates on a wide voltage range of 5-24V and features compact size, minimal blind spots, high precision, and high protection. Its underwater measurement range is from 5-600cm.

With an IP68 protection rating, this sensor can replace a camera for obstacle avoidance and meet the requirements of normal underwater navigation speeds. By using this obstacle avoidance sensor, underwater vehicles can achieve true "unmanned driving" without the need for human observation. Even at a depth of 10m, obstacle avoidance can still be easily accomplished.

Waterproof level of IP68

Thanks to its small size and minimal blind spots, this sensor takes up minimal space and can be easily integrated into various projects.

Compact in size, with a small blind zone

Note: The sensor can only be used underwater as it requires the presence of water to provide accurate data.

Features

Compact in size, with a small blind zone

Lightweight and fast response time

Waterproof level of IP68

Applications

Underwater robot obstacle avoidance and self-control detection

Measurement of water depth by underwater robots

Applications Measurement of water depth

Specification

Measurement Range: 5-600cm

Measurement Accuracy: ±(0.5+S*0.5%)cm@<2m, ±(1+S*1%)cm@>2m

Operating Voltage: 5-24V

Standby Current: =1mA

Operating Current: =10mA

Output Mode: UART controlled

Power-on Startup Time: =500ms

Output Response Time: 14ms

Angle: 8-16°

Operating Temperature: -15~50°C

Storage Temperature: -25~80°C

Storage Humidity: 65%~90% RH (non-condensing)

Documents

Product wiki

Parts List

Underwater Ultrasonic Obstacle Avoidance Sensor (6m) x1

This product is listed in:

Sensors>Distance>Ultrasonic
