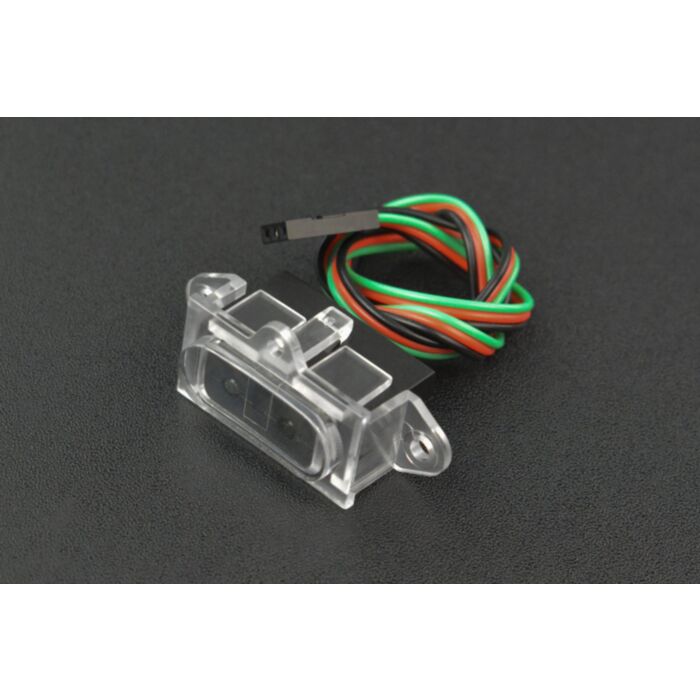

Infrared IR Proximity Sensor for Arduino (10±5mm~80±20mm)

SKU: SEN0556 Brand: DFRobot
Infrared IR proximity distance sensor can detect the presence of an object within a distance of 10±5mm to 80±20mm, can be embedded in detection devices...
$6.55 AUD, inc GST
$5.95 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
The shipping address needs to be in the AusPost next day network and eParcel Express is chosen during checkout. On rare occasions, orders may be delayed by up to one business day due to AusPost pickup timings or for order verifications.

Quantity Discounts:

  • 10-25 $5.77 (exc GST)
  • 25+ $5.65 (exc GST)
- +

6 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $7+ Standard (5+ days*, tracked)
  • $11+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This proximity sensor measures reflected infrared(IR) energy to detect the presence of an object within a distance of 10±5mm to 80±20mm. It outputs high/low and has the advantages of strong anti-interference ability, quick response, and small size. So this module can be easily embedded in various detection devices like automatic hand washers, smart taps, smart toilets, smart restrooms, and object proximity switches.

In addition, the sensor includes a housing with mounting holes, which allows users to design proper installation for it to ensure waterproofing when applied to scenarios in which it's likely to contact water, such as smart taps and automatic hand washers.

Infrared IR Proximity Sensor Arduino

Connection Diagram

Features

  • No mechanical parts, electrical control, strong stability
  • Strong anti-interference to external light
  • Small size, easy to install
  • Applications

  • Automatic hand washer
  • Smart tap
  • Home appliances or device requires proximity detection
  • Specification

  • Operating Voltage: 5V
  • Output: high/low level
  • Operating Current: less than 30mA
  • Power: less than 100mW
  • Response Time: 100µs
  • Sensing Range: 10±5 to 80±20mm
  • Operating Temperature: -20 to 75°C
  • Storage Temperature: -20 to 80°C
  • Lifetime: 50000h
  • Operating Humidity: less than 70%
  • Documents

  • Product wiki
  • Parts List

  • Infrared Proximity Sensor × 1
  • This product is listed in:

    Sensors>Infrared
