IMX179 8MP Autofocus USB Camera Module, 1/3.2"

SKU: AC-UB0240 Brand: Arducam

This camera is based on 8MP IMX179 USB Camera Module. The max resolution & frame rate is 3264(H)×2448(V)@30fps.

$78.95 AUD, inc GST

$71.77 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
For next-day delivery, the shipping address must be in the AusPost next-day network, eParcel Express must be selected, and the order must be placed before 2PM AEST Mon-Thurs excluding NSW Public Holidays. Orders may be delayed due to AusPost pickup timings and order verifications. eParcel Express is typically a 1-day service within the AusPost next-day network, though it is sometimes 2+ days.

Quantity Discounts:

6+ $68.90 (exc GST)
12+ $66.75 (exc GST)

This camera is based on 8MP IMX179 USB Camera Module. The max resolution & frame rate is 3264(H)×2448(V)@30fps. Besides, we have equiped the camera with Auto Focus Lens. Arducam has developed and designed this camera based on SONY IMX179 sensor. Arducam team is committed to creating more convenient and more efficient camera solutions. We have expanded the using scope of the sensor, enabling the camera to realize your various projects. The camera is equiped with a 62°(H) autofocus lens, allowing you to use it for more applications. It is compatible with Windows, Linux, Android and MAC and no additional drivers required. If you have any other requirements, please communicate with our sales team, we look forward to further cooperation with you.

Applications

3D Scanner

VR Camera

Lightburn Laser Engraver Machine

Surveillance

Video System

Specifications

Sensor Features Sensor Features

Sensor: Sony IMX179
Resolution: 8MP
Chroma: Color
Shutter Type: Rolling shutter
Optical Format: 1/3.2"
Output Format: YUYV/MJPG
Pixel Size: 1.4µm*1.4µm
Sensor Active Area: 3264(H)×2448(V)
Frame Rate MJPG: 30fps@640 x 480/600 x 800/1024x768/1280 x 720 /1280 x 960/1600 x1200/1920 x 1080/2048 x 1536/2592 x1944/3264 x 2448
YUY2: 1fps@3264 x 2448; 2fps@2592 x1944/2048 x 1536; 5fps@1920 x 1080/1600x 1200; 7.5fps@1280 x 960; 10fps@1280 x720; 15fps@1024 x768; 25fps@800 x 600;30fps@640 x 480

Lens

Focus Type: Auto Focus
FOV: 62°(H)
Lens Mount: M6.5*P0.25mm
F.NO 2.8±5%
Focal Length 3.543mm±5%
TV Distortion <1%

Electrical and Mechanical

USB Interface: Interface USB 2.0 device
Connector: SM05B-SRSS-TB
UVC Complaint: no additional drivers required

Operating Voltage DC 5V +/- 5%
Working Current Max 300mA
Operating Temp. -4°F-158°F(-20°C to 70°C)
Camera Board Size 62mm x 9mm x 6mm
Functionality and Compatibility
Audio Single Microphone
Supported OS Windows, Linux, Android and MAC
Sample Application Amcap-Windows Camera application for Video and Still Capture
UVC Controls Brightness, Contrast, Hue, Saturation, Sharpness, Gamma, White Balance, Gain, Exposure

Notes:

The package contains small contents, please keep it away from children to avoid accidental ingestion
After receiving the package, please confirm whether the contents of the package are consistent with the description.
No platform board (Raspberry Pi/Nvidia Jetson Nano/NX board) is included in the package

Documentation

Package Includes

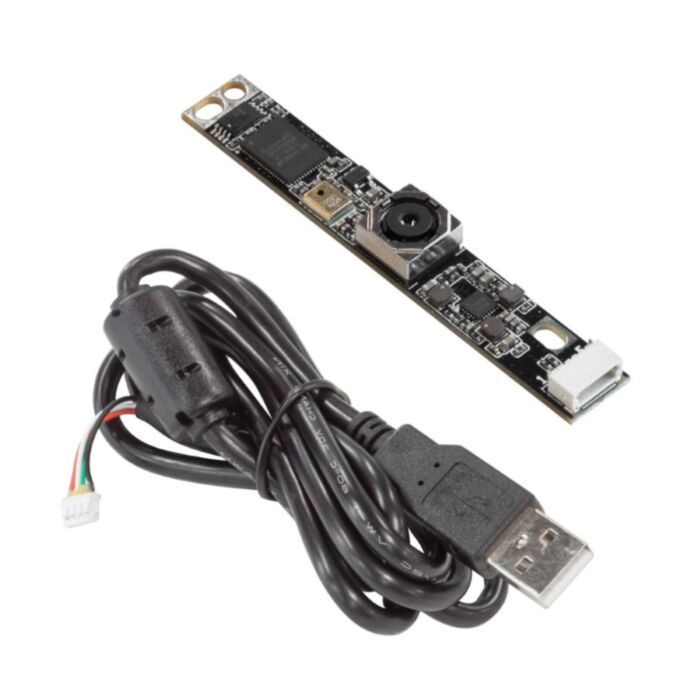

1 x Arducam IMX179 8MP Camera Module
1 x USB Cable (1m)
