IDC Breakout Helper - 2x3 (6 pin)

SKU: ADA2105

$2.00 AUD, inc GST
$1.82 AUD, exc GST

More Views

IDC Breakout Helper - 2x3 (6 pin)
2 AUD

SKU: ADA2105

$2.00 AUD, inc GST
$1.82 AUD, exc GST
1 reviews 0 5 5
In stock, ships today if ordered before 2PM
Delivered by Mon, 18th of Dec

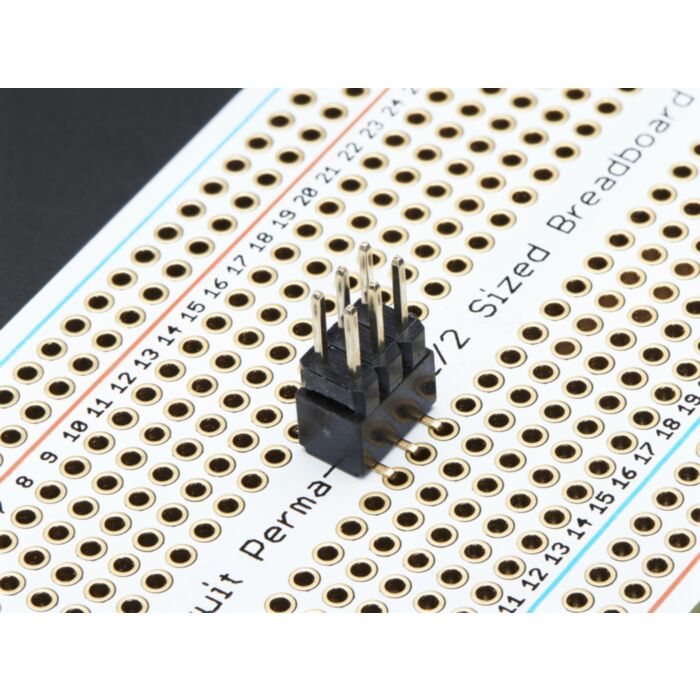

This little 2x3 (6 pin - 0.1 spaced) IDC Breadboard Helper is great in conjunction with Adafruit's 6-pin IDC cable. It comes in two parts, a 'pin-through' socket and a male header. The socket straddles the center of a breadboard or Perma-Proto and then header plugs into the top of the socket. Since IDC cables are so standard, but a royal pain to use with breadboards, this is a good and cheap hack for prototyping. Works best when soldered in place. Adafruit have used these to prototype on a solderless breadboard but some customers report their breadboards don't play nice with the shorter pins so your mileage may vary

Each order comes with one socket and one header. Breadboard, Perma Proto and IDC cable not included!

We also have helpers for:


Technical Details

  • Dimensions (assembled): 8mm x 8mm x 17mm / 0.3" x 0.3" x 0.7"
  • Dimensions (header): 7mm x 4.5mm x 12mm / 0.3" x 0.2" x 0.5"
  • Dimensions (socket): 8mm x 8mm x 8mm / 0.3" x 0.3" x 0.3"
  • Weight (assembled): 0.7g
Documentation and Resources:

Product Comments


Customer Reviews

  1. Review by Andrew verified purchaser
    Rating
    100

    Remarkably handy little critter that allows me to connect an Arduino ISP cable to a breadboard. Great if you're patching together an unusual combination. (Posted on 4/09/2017)
