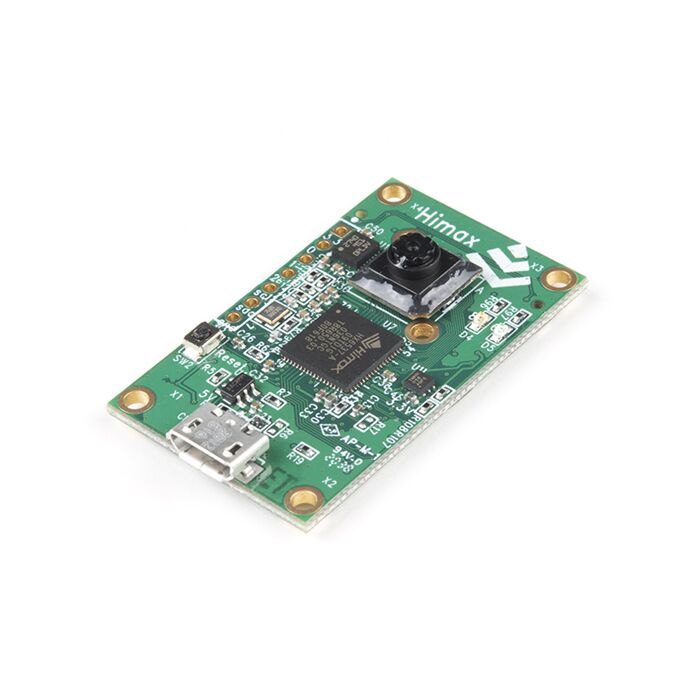

Himax WE-I Plus EVB Endpoint AI Development Board

SKU: DEV-17256 Brand: Sparkfun

The Himax WE-I Plus EVB Endpoint AI Development Board is the perfect solution for just that; a computer/machine vision or AI endpoint.

$154.95 AUD, inc GST

$140.86 AUD, exc GST

Available with a lead time
Expect dispatch between Apr 22 and Apr 27

Quantity Discounts:

5+ $136.64 (exc GST)
25+ $133.82 (exc GST)
100+ $128.18 (exc GST)

The Himax WE-I Plus EVB Endpoint AI Development Board is the perfect solution for just that; a computer/machine vision or AI endpoint.

In collaboration with Google TensorFlow Lite for Microcontrollers framework and Synopsys embARC MLI library, the Himax WE-I Plus EVB provides a complete development environment to deploy all TensorFlow Lite for Microcontrollers examples; “Person detection”, “Micro speech”, and “Magic wand”, for “Vision”, “Voice” and “Vibration” applications.

The WE-I Plus EVB uses a built-in WE-I Plus ASIC (HX6537-A) with embedded Synopsys ARC EM9D DSP running at 400MHz and 2MB internal SRAM and 2MB Flash for larger Neuro Network model deployment. To support “Vision” applications, this board features a Himax HM0360 ultra-low-power VGA mono camera. The latency time for 250KB TensorFlow Lite for Microcontrollers “Person detection” example is only 40ms. To support “Voice” applications, this board features two MEMS microphones. The latency time of the 20KB TensorFlow Lite for Microcontrollers “Micro speech” example is only 6ms. To support “Vibration” applications, this board features a STM LSM9DS1 IMU for 3-axis accelerometer function. The WE-I Plus features an ASIC embedded EM9D DSP Floating-Point-Unit (FPU).

Finally, the WE-I Plus EVB has 2 LEDs to indicate classification result and a built-in FTDI USB to SPI/I2C/UART bridge for Flash programming and metadata or message output. It also provides an expansion header with I2C and GPIOs interface to add external sensors or devices.

Features

E-I Plus ASIC (HX6537-A)
- ARC 32-bit EM9D DSP with FPU
- 400MHz clock frequency
- 2MB SRAM
- 2MB Flash
Himax HM0360 AoS TM ultra-low power VGA CCM
- 1/6" CMOS Sensor
- 640 x 480 Pixel
- 60 FPS
FTDI USB to SPI/I2C/UART bridge
LDO power supply (3.3/2.8/1.8/1.2V)
3-axis accelerometer (STM LSM9DS1)
1x reset button
2x microphones (L/R)
2x user LEDs
MicroUSB connector
Expansion header
- 1x I2C port
- 3x GPIOs
- Power/Ground
