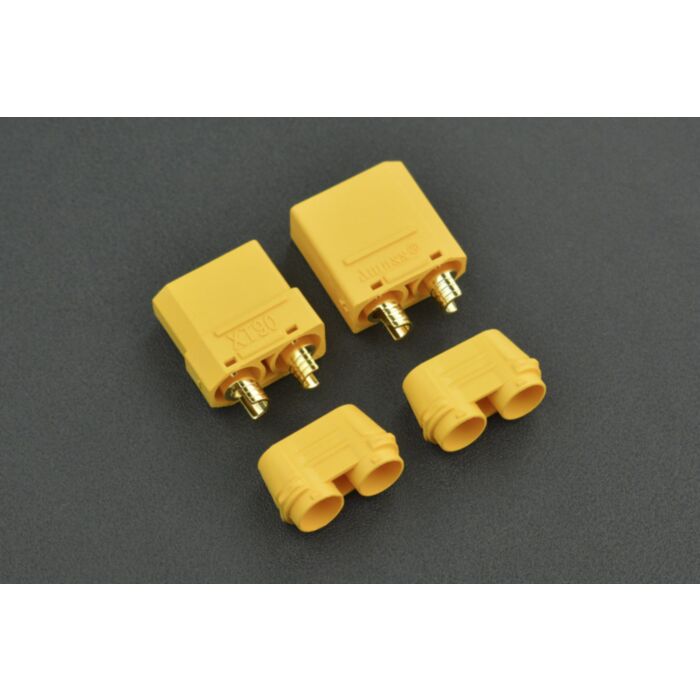

High Quality Gold Plated XT90 Male & Female Bullet Connector

SKU: FIT0588 Brand: DFRobot
This is a CE-certified XT90 plug that is mini-sized and takes up less space. The banana plug features a true gold plating and a cross-slot design with a larger contact...
$6.80 AUD, inc GST
$6.18 AUD, exc GST

Available with a lead time
Expect dispatch between Apr 08 and Apr 15

Quantity Discounts:

  • 10-25 $6.00 (exc GST)
  • 25+ $5.87 (exc GST)
- +

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

This is a CE-certified XT90 plug that is mini-sized and takes up less space. The banana plug features a true gold plating and a cross-slot design with a larger contact area that can withstand a constant 40A and peak current of 90A.The plastic case is made of insulating material and adopts hollow design. It has strong heat dissipation capability and the flame retardant grade has reached UL94 V0. It is not easy to burn after fire, and it is automatically extinguished when it leaves the fire source.Banana inserts and plastic shells are combined with integrated casting technology. At the same time, it adopts the design of special-shaped sheath, groove card slot, non-slip plug and waterproof steam, and has humanized welding joint, which has high integration degree and is convenient for plugging and welding.

Features

  • Non-flammable
  • Low resistance
  • High current resistance
  • Easy to plug

Specifications

  • Type:XT90
  • Rated voltage:DC500V
  • Rated current: 40A
  • Instantaneous current: 90A
  • Insulation shell material: PA
  • Metalhead material: copper plated
  • Flame retardant rating: UL94 V0
  • Recommended wire gauge: 10AWG
  • Contact resistance: 0.3 milliohm
  • Number of uses: 1000 times
  • Working environment temperature: -20 ° C ~ 120 ° C
  • Safety certification: UL/CE

Contains

  • High-Quality Gold Plated XT90 Male & Female Bullet Connector x1
