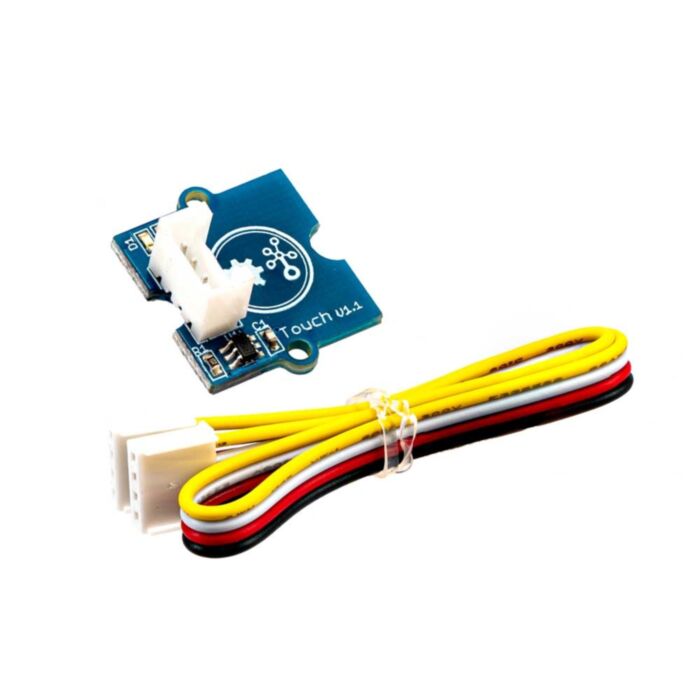

Grove - Touch Sensor (Seeed Studio)

SKU: SS101020037 Brand: Seeed Studio

This is a simple touch sensor module. You can use it to replace a traditional push button. Using the TTP223-B touch detector IC It measures the capacitance...

$7.90 AUD, inc GST

$7.18 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Fri, 24th of Jan

Quantity Discounts:

10-25 $6.89 (exc GST)
25+ $6.68 (exc GST)

This is a simple touch sensor module. You can use it to replace a traditional push button. Using the TTP223-B touch detector IC It measures the capacitance of a metallic pad. It can detect the change in capacitance when a finger is near it. This is the same technology used in the iPhone touch screen. So you can place the metallic pad under a non-metallic surface such as a plastic or glass sheet and it will still work as a button. This may be useful for projects that need to be waterproof. You can also make a secret button by placing it inconspicuously behind a smooth surface. For instance you could place them under a nonmetallic card table and by casually pressing the right location on a tabletop surface you could mysteriously control your DIY project.

Features

Grove compatible interface
2.0-5.5V DC supply
response time max about 60mS at fast mode, 220mS at low power mode @VDD=3V
Low power consumption
2.0cm x 2.0cm twig module
Power indicator led

Applications Ideas

Inconspicuous button
Water proofed electric product
Button key replacement

For all Grove users (especially beginners), we provide you guidance PDF documents. Please download and read through Preface - Getting Started and Introduction to Grove before your using of the product.
