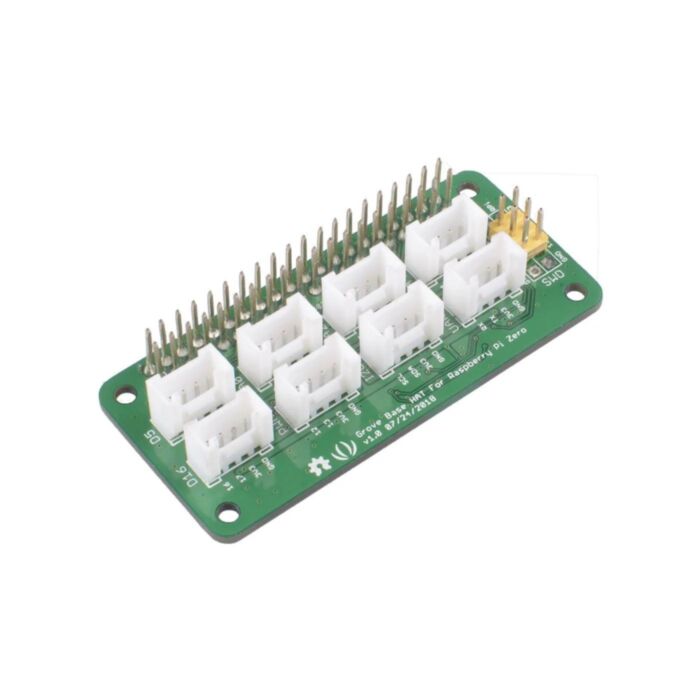

Grove Base Hat for Raspberry Pi Zero

SKU: SS103030276 Brand: Seeed Studio

The Grove Base Hat for Raspberry Pi provides a Digital/Analog/I2C/PWM/UART port to meet all your needs.

$9.80 AUD, inc GST

$8.91 AUD, exc GST

Available with a lead time
Expect dispatch between May 14 and May 16

Quantity Discounts:

10+ $8.55 (exc GST)
25+ $8.28 (exc GST)

Today, the grove series of sensors, actuators, and displays have grown into a large family. More and more grove modules will join the whole Grove ecosystem in the future. We see the Grove helps hundreds of thousands of makers, engineers, teachers, students and even artists to learn, to make, to create...We always know it is our responsibility to make the Grove module compatible with more platforms. Now we bring you the Grove Base Hat for Raspberry Pi and Grove Base Hat for Raspberry Pi Zero, in another word, we bring the Raspberry Pi the whole Grove System.

The Grove Base Hat for Raspberry Pi Zero provides Digital/Analog/I2C/PWM/UART port to meet all your needs. With the help of build-in MCU, a 12-bit 6 channel ADC is also available for Raspberry Pi.

Currently, more than 60 groves have supported the Grove Base Hat for Raspberry Pi . In addition, we will continue to add new compatible modules to the compatible list, the more you use, the more grove will be added.

Compared with Grove Pi+, the Grove Base Hat for Raspberry Pi Zero does not use the ATMEGA chip for data conversion, so it runs faster. We provide the Raspberry Pi driver for Grove Base Hat for Raspberry Pi Zero. What's more, Grove Base Hat for Raspberry Pi Zero is much more cost-effective. In other words, we lowered the threshold for using the grove series on the Raspberry Pi. We hope you like it, enjoy :D

Attention

This HAT does not include a Raspberry Pi Zero of any variant, check out our Pi Zero category and grab one!

Features

Support the Raspberry Pi 2/ 3 B/B+ Zero/4
build-in MCU (STM32 or MM32)
12-bit ADC
Multi-type Grove port

Technical details

Dimensions	30mm x65mm x20mm
Weight	14.9g
Operating Voltage	3.3 V
MCU	STM32 of MM32
