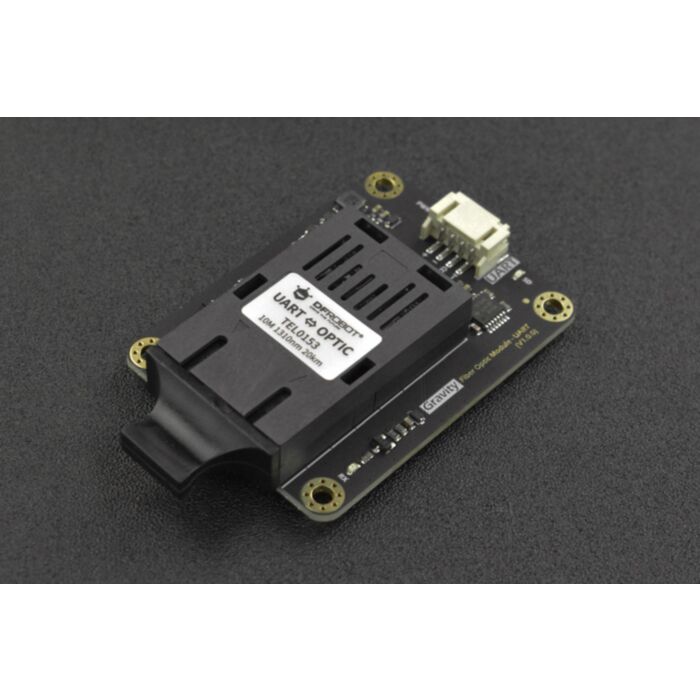

Gravity: UART Fiber Optic Transceiver Module

SKU: TEL0153 Brand: DFRobot
The Gravity: UART Fiber Optic Transceiver Module with complete electrical isolation for preventing electromagnetic interference can run at 2000000 baud in...
$44.40 AUD, inc GST
$40.36 AUD, exc GST

Quantity Discounts:

  • 10-25 $39.15 (exc GST)
  • 25+ $38.35 (exc GST)

Out of Stock

Sign up to get notified when it's available to order.

0 from local stock, 1 supplier stock; your order will dispatch between Dec 1 to Dec 10. And yes, stock levels and lead times are accurate!

Shipping:

  • $6+ Standard (5+ days*, tracked)
  • $10+ Express (2+ days*, tracked)
  • FREE Pickup (Newcastle only - must order online*)

Shipping costs may increase for heavy products or large orders.

Exact shipping can be calculated on the view cart page.

*Conditions apply, see shipping tab below.

Still make do with the hard and thick shielded twisted pair for remote signal-transmitting? And even drop the baud rate again and again just for transmission stability? Now get rid of these problems by using this Gravity: UART Fiber Optic Transceiver Module from DFRobot!

With complete electrical isolation for preventing electromagnetic interference, this module runs at 2000000 baud at any time within a distance of up to 10km. Besides, it features lightning protection and can share cable trunking with strong power. Also, users can use it with a passive optical splitter to realize one-to-many star networking.

Two transceiver modules for only half the price of shielded twisted pair can provide users with long-distance & interference-free fiber-optic communication, good value for money!

Gravity: UART Fiber Optic Transceiver Module

Interface & Pin

Pinout

NameDescription
Gravity: UARTUART interface, connect to MCU or sensor
PWR LEDPower indicator, turns ON when powered on
SD LEDIndicator for optical fiber disconnection, which lights up when the fiber optic disconnection is detected
TX LEDIndicator for fiber optic transmitting, which blinks when transmitting signal
RX LEDIndicator for fiber optic receiving, which blinks when receiving signal
SC Fiber Optic InterfaceConnect to SC fiber optic interface

SD LED can not show all the fiber disconnections or unstable transmissions. Please use a red pen, optical power meter and other tools to check error when a connection problem occurs.

Gravity: UART Fiber Optic Transceiver Module

Wiring Instructions

Features

  • With complete electrical isolation
  • Lightning protection
  • Applications

  • Fiber-optic communication
  • One-to-many star networking
  • Specification

  • Supply Voltage: 3.3V~5V
  • Signal Voltage: 3.3V~5V
  • Maximum Speed: 2000000 baud
  • Communication Distance: 10km
  • Operating Wavelength: 1310nm
  • Fiber Optic Type: Single Mode
  • Fiber Optic Interface: SC
  • Operating Temperature: 0~70°C
  • Documents

  • Product wiki
  • Dimensions
  • Parts List

  • Gravity: UART Fiber Optic Transceiver Module x1
  • Gravity 4P Connector x1
