Gravity: IO Expansion & Motor Driver Shield

Rating:

100% of 100

SKU: DFR0502 Brand: DFRobot

Gravity IO Expansion Shield with Motor Driver is a new product designed for Arduino Boards. It combines IO Expansion Shield and DC Motor Driver Shield, equipped...

$29.20 AUD, inc GST

$26.55 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Delivered by Tue, 21st of Jan

Quantity Discounts:

10-25 $25.48 (exc GST)
25+ $24.69 (exc GST)

Introduction

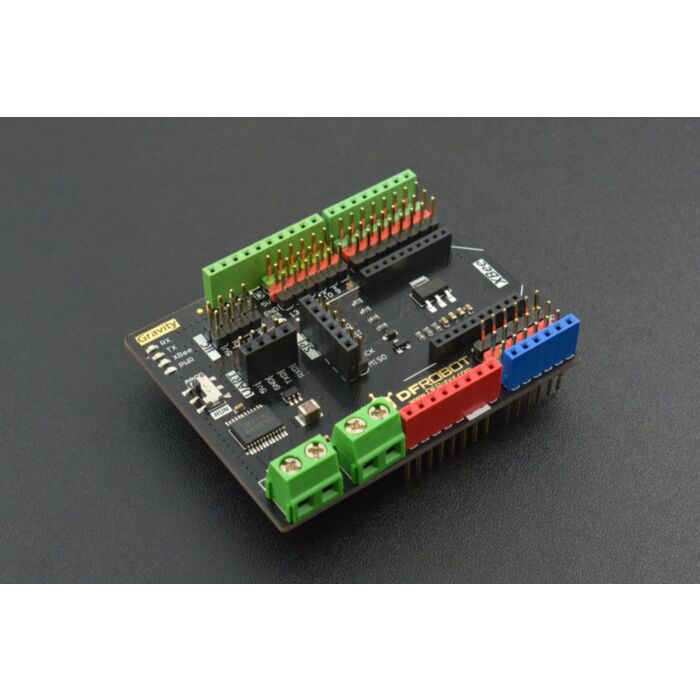

Gravity IO Expansion Shield with Motor Driver is a new product designed for Arduino Boards. It combines IO Expansion Shield and DC Motor Driver Shield, equipped with Gravity sensor interface and TB6612FNG dual motor driver. It also has XBee socket, I2C interface and UART port, makes the connections more convenient. With TB6612FNG dual channel motor driver IC, the shield can drive 2x1.2A DC motors at the same time. It supports PWM speed control, each channel can output 1.2A continuous current and the peak current can reach to 3.2A. It is compatible with majority micro DC motors in the market. It is a solid choice for small intelligent robot controls, convenient and cost-effective.

FEATURES

Compatible with Arduino UNO R3 Pinmap.

Gravity-3Pin interface, plug & play, esay to use.

Integrated XBee Slot, XBee, WiFi Bee, Bluetooth Bee compatible.

Program download switch will avoid serial occupancy during Arduino UNO/Mega downloading.

2x1.2A TB6612FNG DC motor driver (power from Vin port).

Specification

Digital interface: 14

Analog interface: 6

IIC interface: 2

SPI interface (compatible with Arduino UNO R3): 2

Serial port: 1

XBee Slot: 1

Output Current: 1.2A single channel continuous driving current

Start/ Peak Current: 2A (continuous pulse)/ 3.2A (monopoles)

Input Voltage: 12V (peak value)

Occupying Pins: D4, D5, D6, D7 (caution: the pin is occupied when control the motor)

Size: 68.5mm×53.3mm (2.7 inch×2.1 inch)

Weight: 36

Documents

Product wiki Schematic

Parts List

Gravity: IO Expansion & Motor Driver Shield x1
