Gravity: I2C RGB LED Colorful Button Module

Skip to the beginning of the images gallery

Gravity: I2C RGB LED Colorful Button Module

SKU: DFR0991 Brand: DFRobot

This I2C button module with RGB LED not only supports reading button status like conventional ones, but also controlling RGB LED color and switching...

$17.30 AUD, inc GST

$15.73 AUD, exc GST

Available with a lead time
Expect dispatch between Feb 28 and Mar 04

Quantity Discounts:

10-25 $15.10 (exc GST)
25+ $14.63 (exc GST)

This is an I2C button module with RGB LED. The module not only supports reading button status like conventional ones, but also controlling RGB LED color and switching on/off the light independently, which could create more visual and interactive experiences for your projects. For example, when the system prompts users to press the button, the RGB light blinks in green; when the button is pressed, the light turns red.

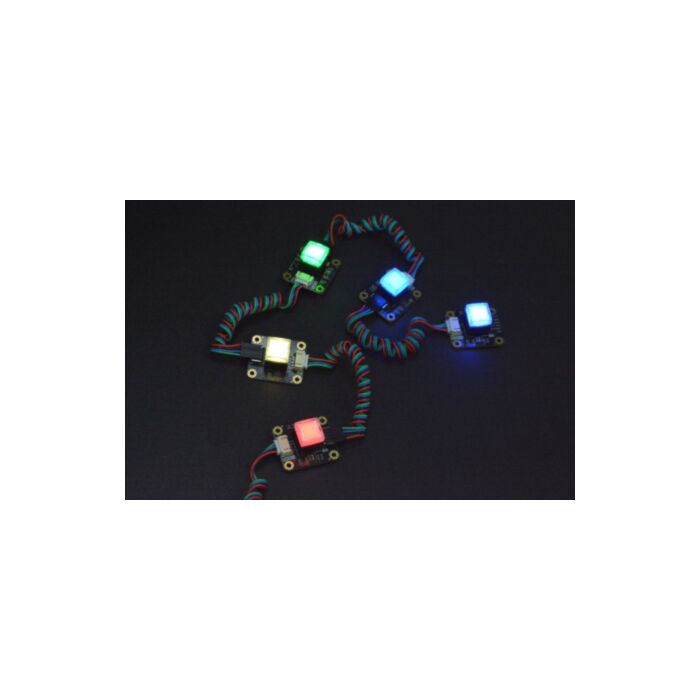

This module has an onboard 3-bit DIP switch for setting 8 different I2C addresses, which means up to 8 such button modules can be cascaded together without occupying additional ports.

Features

High-quality button, mechanical keyboard-like tactile feedback

Soft and even color light

Independent control of RGB LED, eight I2C addresses can be set

Double I2C ports for simple cascade

On-board interrupt interface for highly real-time tasks

Applications

Simulated Elevator Buttons

Mini Matrix Keyboard

IoT Projects

DIY Electronic Projects

Specification

Adjustable Color Range: R: 0-255, G: 0-255, B: 0-255

Maximum Cascading Modules: 8

Operating Voltage: DC 3.3V-5V

Button Travel Distance: 2.2±0.2mm

Button Life: 200,000 continuous presses

Interrupt Mode: the interrupt interface outputs HIGH when the button is pressed

Communication: I2C

Connector: PH2.0-4P (Gravity standard), 2.54-5P pin header

Dimensions: 37mm×32mm×19.5mm/1.46×1.26×0.77"

Documents

Parts List

Gravity: I2C RGB LED Button Module × 1

Gravity-4P I2C/UART Sensor Cable × 1
