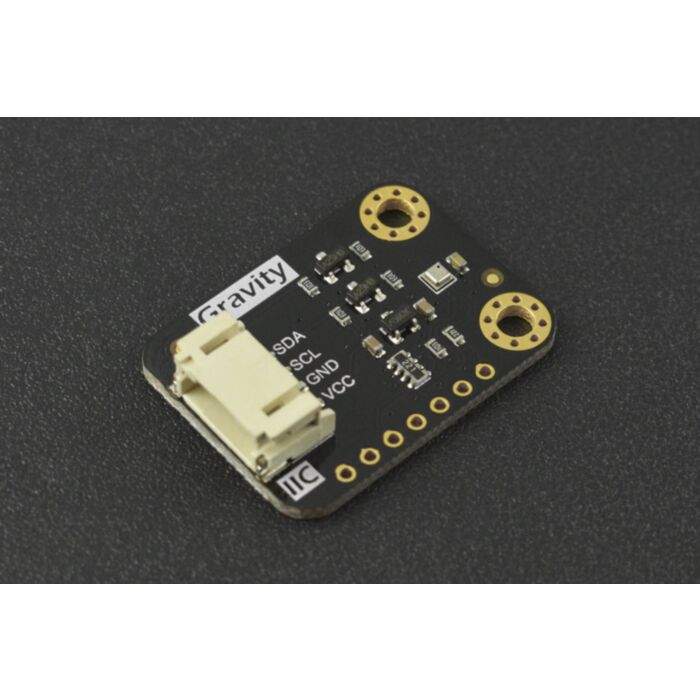

Gravity BMP388 Barometric Pressure Sensors

Rating:

100% of 100

SKU: SEN0251 Brand: DFRobot

This new released BMP388 barometric pressure sensor by DFRobot is equipped with the functionality of temperature and pressure measurement. It supports Arduino code...

$11.95 AUD, inc GST

$10.86 AUD, exc GST

In stock, ships same business day if ordered before 2PM
Fastest delivery: Tomorrow* Disclaimer:
For next-day delivery, the shipping address must be in the AusPost next-day network, eParcel Express must be selected, and the order must be placed before 2PM AEST Mon-Thurs excluding NSW Public Holidays. Orders may be delayed due to AusPost pickup timings and order verifications. eParcel Express is typically a 1-day service within the AusPost next-day network, though it is sometimes 2+ days.

Quantity Discounts:

10+ $10.43 (exc GST)
25+ $10.10 (exc GST)

This new released BMP388 barometric pressure sensor by DFRobot is equipped with the functionality of temperature and pressure measurement. It supports Arduino code control. Compared with the earlier version of BMP180 and BMP280, this sensor exhibits lower power consumption, higher resolution and higher sampling rate.

The barometric pressure is usually used to measure barometric pressure and temperature. But besides that, we can also use the sensor to measure the altitude and the relative floor height due to the fact that there is a certain relationship between altitude and barometric pressure. What’s more, BMP388 enables accurate GPS tracking. So with an IMU sensor and BMP388, we can experience 3D indoor positioning and navigation.

BMP388 is based on Bosch’s mature Piezo resistive pressure sensor technology featuring high accuracy as well low power consumption and high EMC robustness.

The sensor features an accuracy of about ±8Pa, which is equivalent to about ±0.5m difference in altitude, and an absolute accuracy temperature of ±0.5°C for a temperature range between 0°C and 65°C.

Features

Low power consumption
Low noise
High resolution
Small dimensions
Best-in-class offset temperature coefficient(-20°C-65°C@700-1100hPa)

Specification

Operating Voltage: 3.3V-5.5V
Operating Current: 0.5mA
Operating Range: 300-1250 hPa
Relative Accuracy: ±8 Pa (equivalent to ±0.50m @700-900hPa, 25°C-40°C)
Absolute Accuracy: ±50 Pa(0°C-65°C@300-1100hPa)
Temperature Coefficient Offset: ±0.75 Pa/K(-20°C-65°C@700-1100hPa)
Absolute Accuracy Temperature: ±0.5°C(@0°C-65°C)
Operating Temperature: -40°C~80°C (more accurate in 0°C-65°C)
External Dimension: 22mm x 30mm
Mounting Hole Position: 15mm
Mounting Hole Dimension: inside diameter 3mm/ outside diameter 6mm
Interface: Gravity-I2C 4Pin or SPI (SPI is only used at 3.3V)

Documents

Product wiki

Parts List

Gravity: BMP388 Barometric Pressure Sensor module x1
PH2.0-4P sensor cable x1
