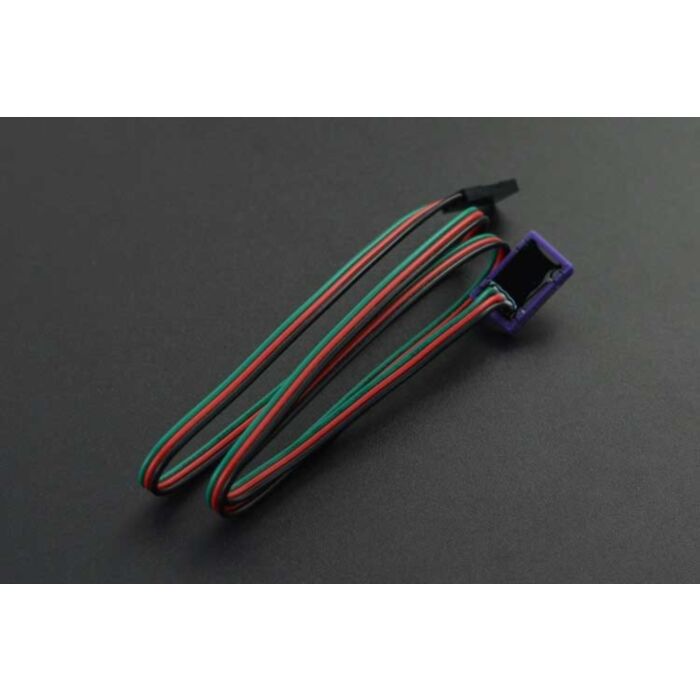

Gravity: 5V Non-contact Liquid Level Sensor

SKU: SEN0485 Brand: DFRobot

This small 5V non-contact liquid level sensor with Gravity Interface is able to detect 0-100°C conductive liquid levels in non-metallic containers in sensing range...

$16.60 AUD, inc GST

$15.09 AUD, exc GST

Available with a lead time
Expect dispatch between Dec 30 and Jan 03

Quantity Discounts:

10-25 $14.64 (exc GST)
25+ $14.34 (exc GST)

Introduction

This small 5V non-contact liquid level sensor with Gravity Interface is able to detect 0-100°C conductive liquid levels in non-metallic containers in sensing range of 3mm. Provided with digital quantity output(low), the sensor can be directly used on Arduino UNO for liquid level detection of the water tank, beverage machine, water pipe, scientific experiment test tube, etc.

With IP67 protection level, the module employs an integrated seamless shell and fully enclosed waterproof glue encapsulation process to block the intrusion of dust and protect internal electric components. Besides, the sensor cable, with great electrical conductivity, is flexible, durable, waterproof, and oil-proof.

Connection Diagram

Features

Gravity interface, easy to connect
Small size, IP67 protection grade

Specification

Supply Voltage: 5V
Sensing Distance: 3mm
Applicable Medium: 0-100°C conductive liquid (can only detect non-metallic containers)
Output Mode: high/low(low level output)
Working Current: <5mA
Working Temperature: -5~80°C
Storage Temperature: -20~85°C
Protection Level: IP67

Documents

Product wiki

Shipping List

Gravity: 5V Non-contact Liquid Level Sensor x1
