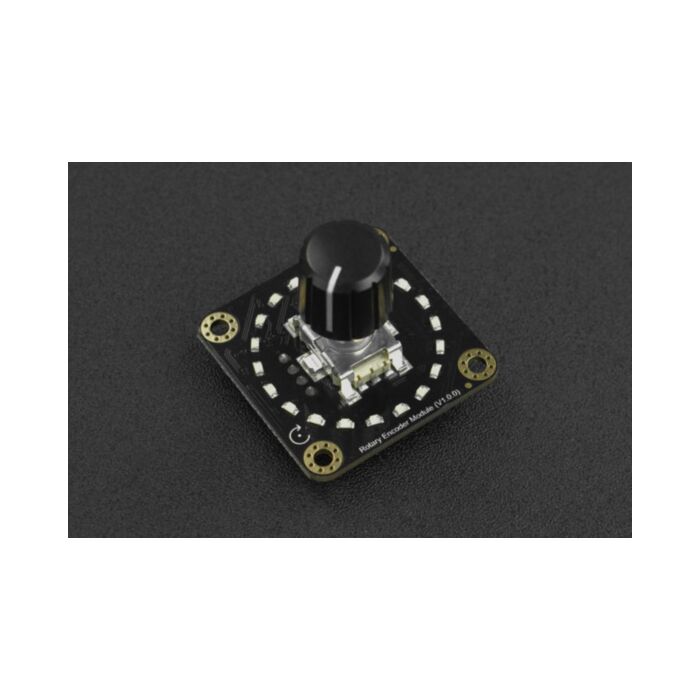

Gravity: 360 Degree Rotary Encoder Module

SKU: SEN0502

This is a cascadable 360 ° rotary encoder switch with 20 PPR, and each pulse corresponds to a detent. There are LED lights set for each detent to allow...

$17.05 AUD, inc GST

$15.50 AUD, exc GST

Available with a lead time
Expect dispatch between May 05 and May 07

Quantity Discounts:

10+ $14.88 (exc GST)
25+ $14.42 (exc GST)

Recommended Essentials:

PiicoDev Prototyping Cable (Male) 200mm

$0.98

Introduction

This looks like a potentiometer, but it’s an encoder switch.

It is a cascadable 360 ° rotary encoder switch with 20 pulses per revolution, and each pulse corresponds to a detent. There are LED lights set for each detent to allow users visually check the real-time status of the encoder.

For ease of use, the module is designed with I2C data output and configurable accuracy within 1~51 for every detent (set in the program). For instance, when it is set to 1, then you can turn on one LED light by rotating 2.5 revolutions; when set to 51, then one LED light can be switched on by rotating one detent.

In order to apply to more scenarios, the encoder is equipped with cascade function that enables to control multiple output devices by occupying only one I2C interface, such as, simultaneously controlling light brightness, color, volume, speed, etc.

Features

Pluggable cascade
I2C Data output, forward to increase, reverse to decrease
Onboard LED detent indicator
Allow setting 4 different I2C addresses by address switch

Applications

Application Field

Automotive electronics
Multimedia speaker
Instruments and Apparatuses
Smart home

Application Case

Volume adjustment
Fire regulation
Speed regulation
Light adjustment

Specification

Operating Voltage: 3.3V~5V
Total Rotating Angle: 360°
Pulses Per Revolution: 20
Interface: two Gravity connectors; I2C
Cascadable Device Number: 4
Rotation Lifespan: 30000±200 Cycles
Contact Resistance: =100mO
Insulation Impedance: 100MO above
Oscillation: <10ms press
Operating Temperature: -30°C ~ +80°C
Accuracy: 1~51
Minimum Settable Value: 1(Light up one LED when rotating 2.5 turns)
Maximum Settable Value: 51(Light up one LED when rotating 1 detent)
Storage: 0~1023
Dimension: 37*37mm/1.46*1.46”

Parts List

Gravity: Rotary Encoder Module x1
Gravity I2C/UART Sensor Connector x1
